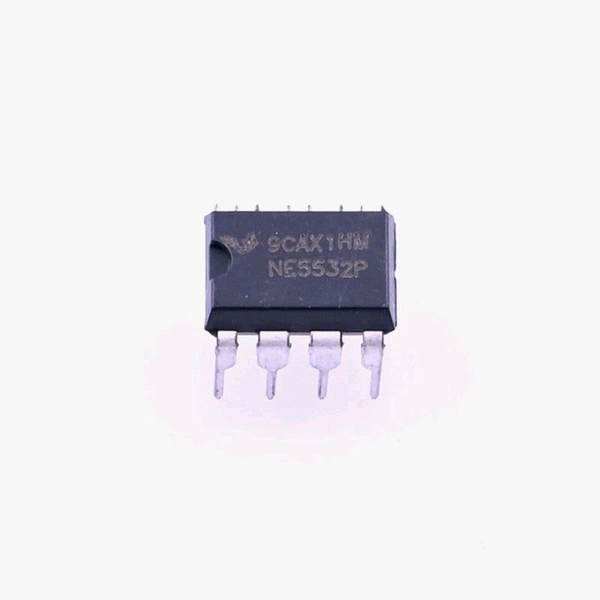

NE5532 - Low Noise Dual Op-Amp IC Q8 C2

NE5532 IC has a maximum operating voltage of 22V. The Op-amp has a CMRR value of 100 dB with a high gain of 100V/mv. The Slew Rate is 9V/us. This amplifier features input-protection diodes, and output short-circuit protection.

The NE5532 is a high-performance operational amplifier combining excellent dc and ac characteristics. These operational amplifiers are compensated internally for unity-gain operation.



NE5532 pinout:

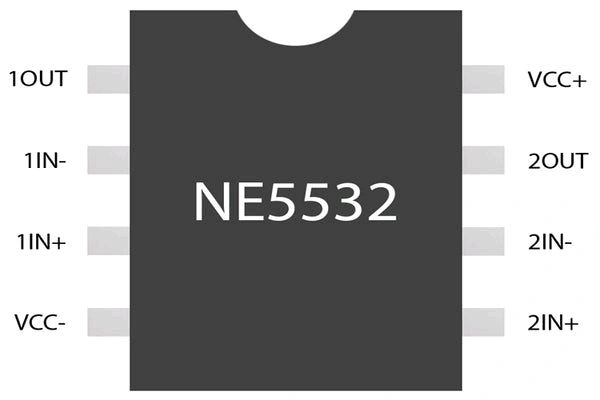

NE5532 IC Pinout

NE5532 Specifications

Specifications:

Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz

Unity-Gain Bandwidth: 10 MHz Typ

Common-Mode Rejection Ratio: 100 dB Typ

High DC Voltage Gain: 100 V/mV Typ

Peak-to-Peak Output Voltage Swing 26 V Typ with VCC± = ±15 V and RL =600Ω

High Slew Rate: 9 V/µs Typ

NE5532 Applications:

AV Receivers

DVD Recorders and Players

Pro Audio Mixers

Netbooks

Embedded PCs



NE5532 Dimension and footprint:

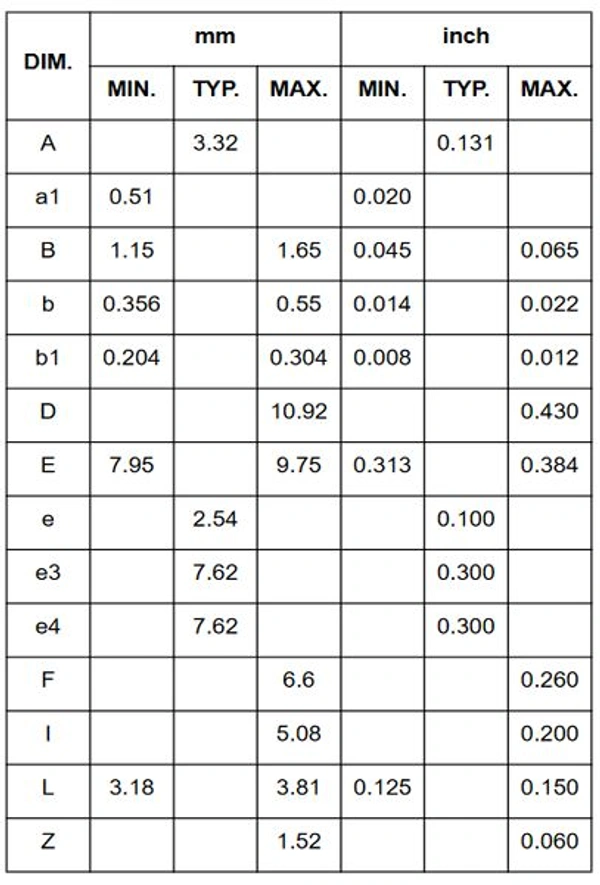

NE5532 Dimension

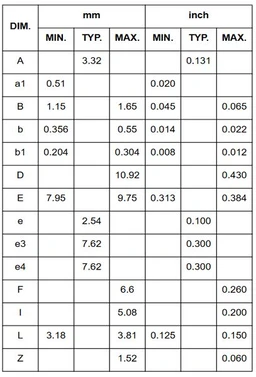

NE5532 footprint



Package Contains

1x NE5532 Op Amp IC
