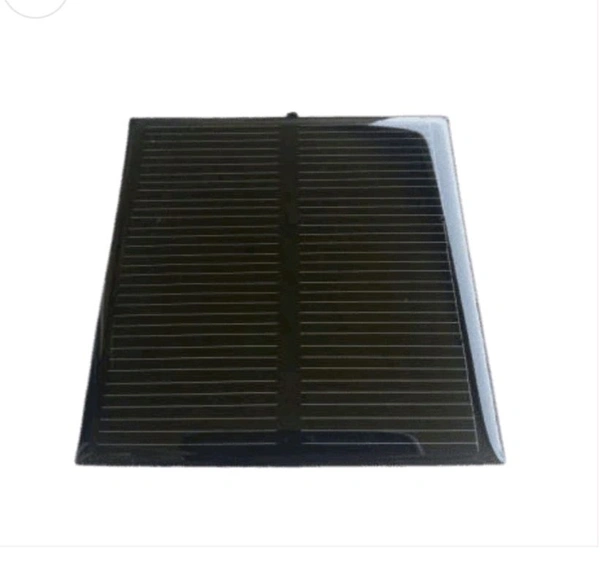

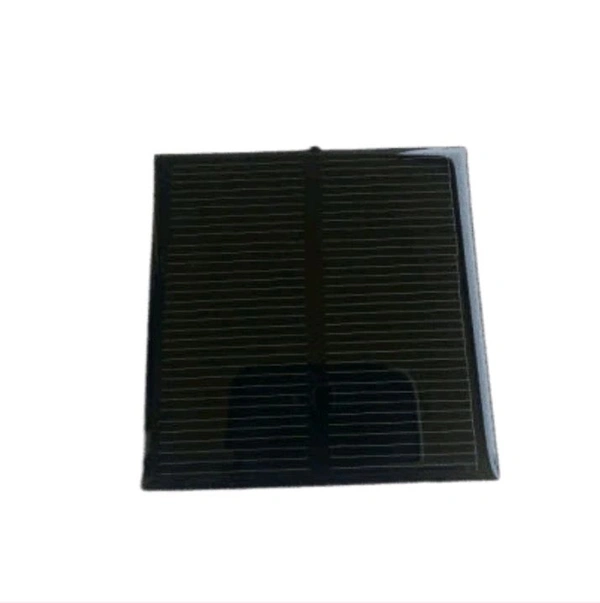

Mini Epoxy Solar Panel 70X70 mm C6 B5

A mini solar panel Epoxy is made using two-component resin increased to a temperature of 50/60 celsius degrees. This type of panels are composed of the following layers:

Epoxy resin

Solar cells

PCB board

Solar cells sensor are encapsulated in epoxy resin that guarantees protection against humidity, insulation, excellent transparency, anti-aging, smooth surface, no cosmetic defect on the surface.

The type of Epoxy panels can usually reach a maximum power of 5W due to the fact that larger size, may cause a deformation of the resin and consequent aesthetic defects.

Applications:

These panels are used especially to power any small object, such as toys, garden lamps, sensors for outdoors, road signs, and more.

Package Includes:

1 x Mini Epoxy Solar Panel 70X70 mm

Specifications:

Voltage 5.5V

Power 0.65W

Current 0.12A

Dimensions

70 x 70 x 2.5mm

Weight 10gm
