MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) Q11 C2

MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) Q11 C2

Name: MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) Q11 C2
SKU: SKU-6088
Price: 335 INR
Availability: InStock

₹ 335 / Piece

₹ 350

4%

Delivery Options

Get delivery at your doorstep

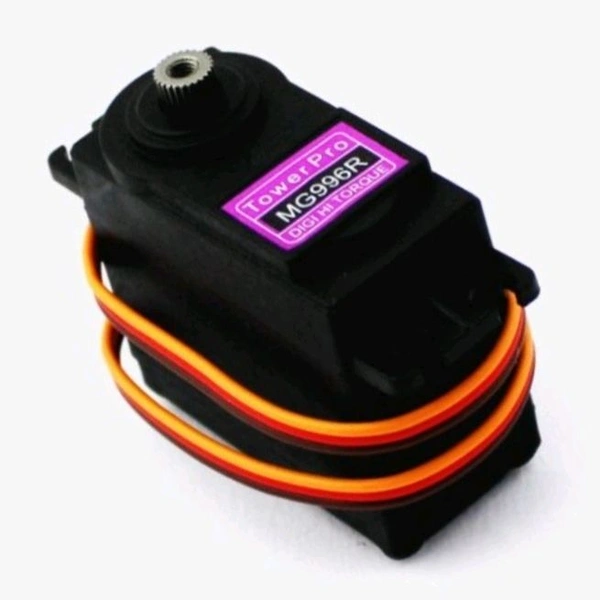

This Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) features metal gearing resulting in extra high 10kg stalling torque in a tiny package. The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock- roofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwidth and centering. The unit comes complete with 30cm wire and 3 pin ‘S’ type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

Important: Please note that these are not Full Metal Gear Servo motors, only the top gear comes in metal.

Wire Configuration :

RED – Positive

Brown – Negative

Orange – Signal (PWM)

Specifications :

Operating voltage: 4.8 V - 7.2 V

Running Current 500 mA – 900 mA (6V)

Stall Current 2.5 A (6V)

Temperature range: 0 ºC – 55 ºC

Control System: Analog

Operating Angle: 180degree

Required Pulse: 900us-2100us

Direction: CCW

Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)

Dead band width: 5 μs

Wire length: 30cm

Connector: 3 pin 'S' type female header

Weight: 55 g

Dimension: 40.7 x 19.7 x 42.9 mm approx.

Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)

Stable and shock proof double ball bearing design

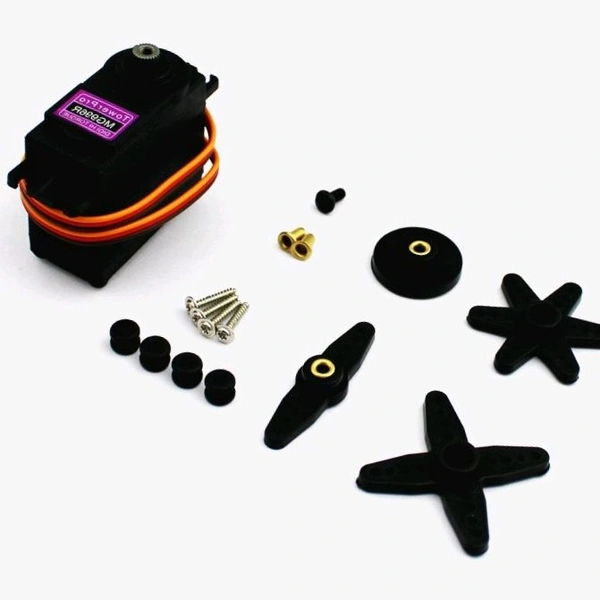

Package Includes:

1 x MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)
