MG995 Metal Gear Servo Motor (180 Degree Rotation) Q11 C2

Note: Please be aware that this MG995 servo motor, despite its affordability, does not come equipped with metal gears inside the servo. This particular model is designed as a budget-friendly option, and as a result, it utilizes plastic gears instead of more durable metal gears inside the servo motor.

While the MG995 servo motor can still serve its purpose in various applications, it is important to consider the potential limitations of plastic gears in terms of longevity, durability, and resistance to heavy loads. Plastic gears may wear down more quickly under extensive use or high-stress conditions compared to their metal counterparts.



MG995 Features and Electrical characteristics:

Operating voltage range is 4.8 V to 7.2 V

Current draw at idle is 10mA

No load operating current draw is 170mA

Current at maximum load is 1200mA

Dimension: 40.7×19.7×42.9mm

Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)

Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)

Rotational degree: 180º

Dead band width: 5 μs

Metal geared servo for more life

Stable and shock proof double ball bearing design

Constant torque throughout the servo travel range

Dimension: 40.7×19.7×42.9mm

Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)

Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)

Rotational degree: 180º

Dead band width: 5 μs

Package Includes:

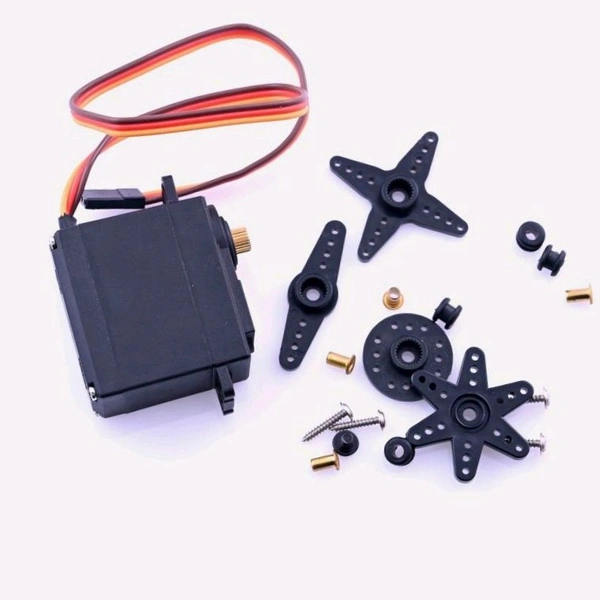

1 x MG995 Metal Gear Servo Motor (180 Degree Rotation)
