Mega R3 ATMEGA2560 16U Board Compatible with Arduino Q2 C1

Mega R3 ATMEGA2560 16U Board Compatible with Arduino Q2 C1

Name: Mega R3 ATMEGA2560 16U Board Compatible with Arduino Q2 C1
SKU: SKU-6121
Price: 1499 INR
Availability: InStock

₹ 1,499

₹ 1,600

6%

Delivery Options

Get delivery at your doorstep

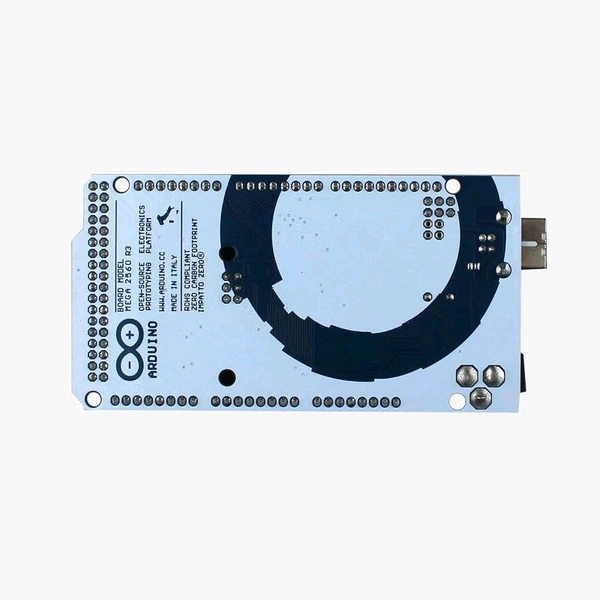

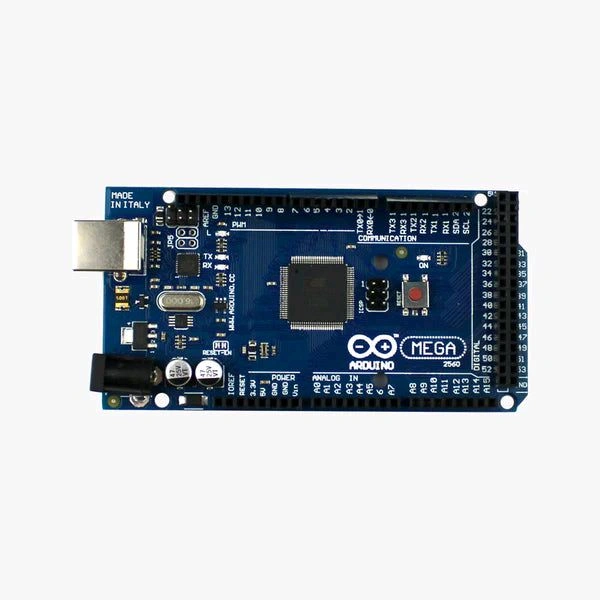

The Mega 2560 is a microcontroller board based on the ATmega2560 and compatible with Arduino. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC to-DC adapter or battery to get started.

Specifications :

Microcontroller : ATmega2560

Operating Voltage : 5V

Input Voltage (recommended) : 7-12V

Input Voltage (limit) : 6-20V

Digital I/O Pins : 54 (of which 15 provide PWM output)

Analog Input Pins : 16

DC Current per I/O Pin : 20 mA

DC Current for 3.3V Pin : 50 mA

Flash Memory : 256 KB of which 8 KB used by bootloader

SRAM : 8 KB

EEPROM : 4 KB

Clock Speed : 16 MHz

LED BUILTIN : 13

Package Includes :

1 x Mega R3 ATMEGA2560 16U Development Board
