MEGA 2560 R3 Development Board - Compatible with Arduino Q2 C1MEGA 2560 R3 Development Board - Compatible with Arduino Q2 C1MEGA 2560 R3 Development Board - Compatible with Arduino Q2 C1
MEGA 2560 R3 Development Board - Compatible with Arduino Q2 C1
MEGA 2560 R3 Development Board - Compatible with Arduino Q2 C1
MEGA 2560 R3 Development Board - Compatible with Arduino Q2 C1

MEGA 2560 R3 Development Board - Compatible with Arduino Q2 C1

₹ 1,150

₹ 1,200

4%

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep

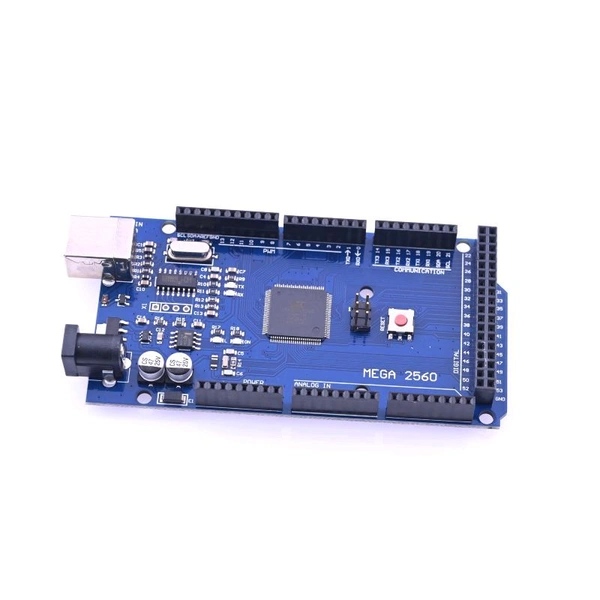

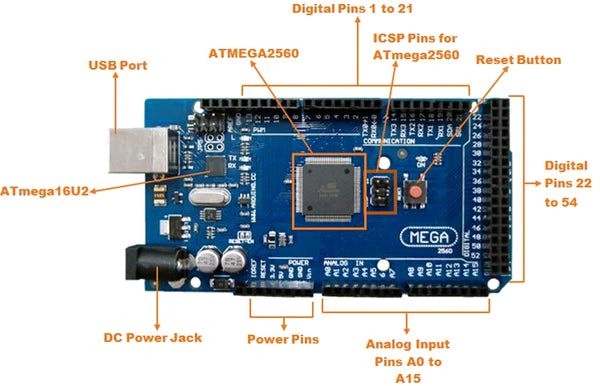

The Mega 2560 is an open-source microcontroller board based on ATmega2560. Along with this, it also has 54 digital I/O pins, 16 Analog Inputs, 4 UARTs, ICSP Header, 16 MHz Crystal Oscillator, a reset button, USB port, and a DC Power Jack. It is designed for projects which require more I/O lines, more sketch memory, and more RAM. It is best suited for Robotics, 3D printers, RC planes, etc. projects which require many sensors with different communication protocols and actuators to work in tandem. It gets programmed with the help of Arduino IDE and you do not need to attach any other components to program them. Its uses include in DIY projects, IoT based projects, Robotics, Prototyping for Electronic components and systems. The Arduino Microcontroller boards such as UNO, Nano, Leonardo, Pro Mini have revitalized the Automation Industry with their sheer simplicity and easy to use interface.



Specifications
The ATmega2560 is a Microcontroller
The operating voltage of this microcontroller is 5V
The recommended Input Voltage will range from 7V to 12V
The input voltage will range from 6V to 20V
The digital input/output pins are 54 where 15 of these pins will supply PWM o/p.
Analog Input Pins are 16
DC Current for each input/output pin is 40 mA
Flash Memory like 256 KB where 8 KB of flash memory is used with the help of bootloader
The Static Random Access Memory (SRAM) is 8 KB
The electrically erasable programmable read-only memory (EEPROM) is 4 KB
The clock (CLK) speed is 16 MHz
The USB host chip used in this is MAX3421E
The length of this board is 101.52 mm
The width of this board is 53.3 mm


Product Description

It hardly takes 5-10 minutes to upload your first program on Arduino Mega Board. You just need a USB A to B cable and Arduino IDE installed on your computer. After installing Arduino IDE, go to Files>Examples>Basics>Blink and compile and upload this on your Board.



Package Contents
1×Mega 2560 Microcontroller Board



Additional Resources
Getting Started with Mega 2560

IDE
