MB102 3.3V/5V Breadboard Power Supply Module

Product Details

• Product: 3.3V or 5V breadboard power supply module
• Model: MB102
• Suitable breadboard: 400 or 830 points breadboard
• Dimensions: 53mm X 32mm X 23mm
• Weight: approx 10g
• Package contains: 1 x MB102 breadboard power supply module

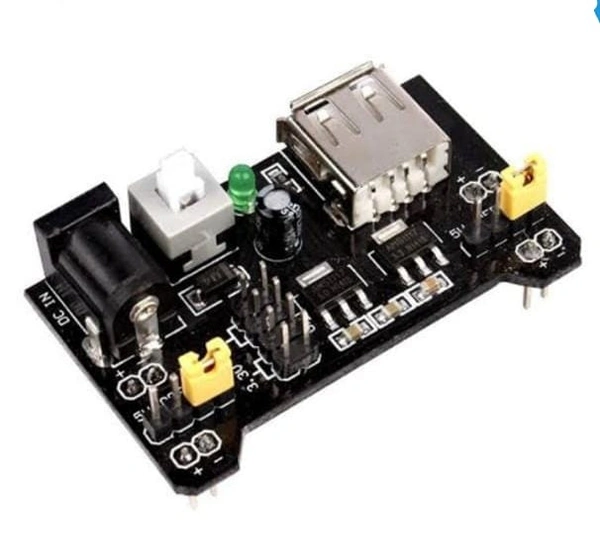

MB102 is a 3.3V/5V breadboard power supply module. It provides 3.3V and 5V output rails also have a USB socket and fit securely in 400 and 830 points breadboard. It takes the input voltage of 6.5V to 12 V from its barrel connector. The module has a series diode polarity reverse protection. It has an on/off switch to control the power and an LED to indicate the presence of power.

The module can also output 5V on USB connector or input through the USB connector. All the features make it a must-have power supply board for the user who needs test or prototype circuits on a breadboard.

Features

3.3V and 5V breadboard power supply module

Fits securely on standard 400 and 830 points breadboard

Has sorting pins to select between voltage level (between 3.3V and 5V) on each breadboard power rail

User can easily switch voltage level between 3.3V and 5v using sorting jumpers

<li>On-board LED indicator to show the presence of the power

Short circuit protection

On-board On/OFF switch to control power supply

Independent control of upper and lower breadboard power rail

Specification

Input voltage: 6.5V to 12V

Output voltage: 3.3V and 5V (can be switched using sorting jumpers)

Output current: 700mA

                                                                          Instructions

The module needs a 6.5V to 12V DC power supply. If it is given less than this then it can not provide 5V output voltage as the voltage regulator requires voltage difference between output and input.

The breadboard is not included in the product package

Not compatible with 830 points GL-12 Breadboard
