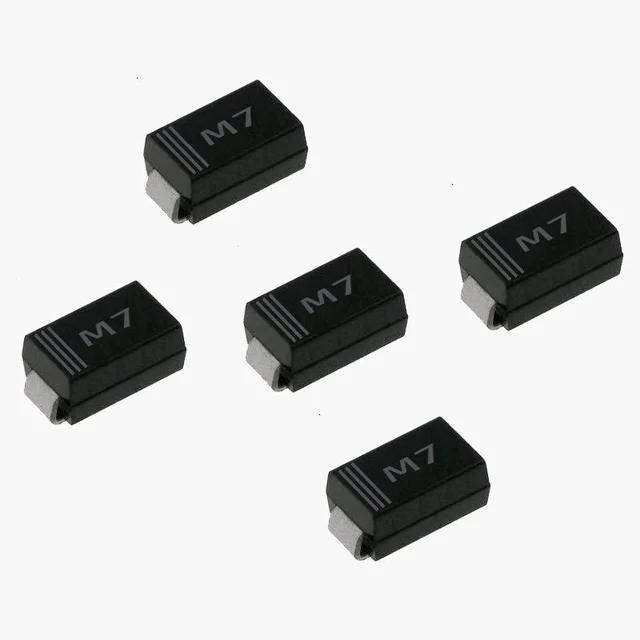

M7 / 1N4007 SMD Diode (Pack of 5) Q16 C3

Features :

SMD Version of 1N4007

Forward Current: 1A

Max Repetitive Reverse Voltage: 1000 V

Max RMS Voltage: 700V

Max DC Blocking Voltage: 1000V

Max instantaneous forward voltage: 1.1 V

Mechanical Characteristics :

Case : JEDEC DO-214AC molded plastic body

Terminals : Solder plated, solderable per MIL-STD-750,Method 2026

Polarity : Color band denotes cathode end.

Specifications :

Peak Repetitive Reverse Voltage (VRRM) 1000V

Maximum RMS Voltage (VRMS) 700V

Maximum DC Blocking Voltage (VDC) 1000V

Maximum Average Forward Rectified Current (IFAV) 1A

Non-Repetitive Peak Forward Surge Current (IFSM) 30A

Operating Junction Temperature Range (TJ) − 65°C to +175°C

Storage Temperature Range (Tstg) − 65°C to +175°C

Quantity 10 Pieces

Package includes :

M7 / 1N4007 SMD Diode x 5
