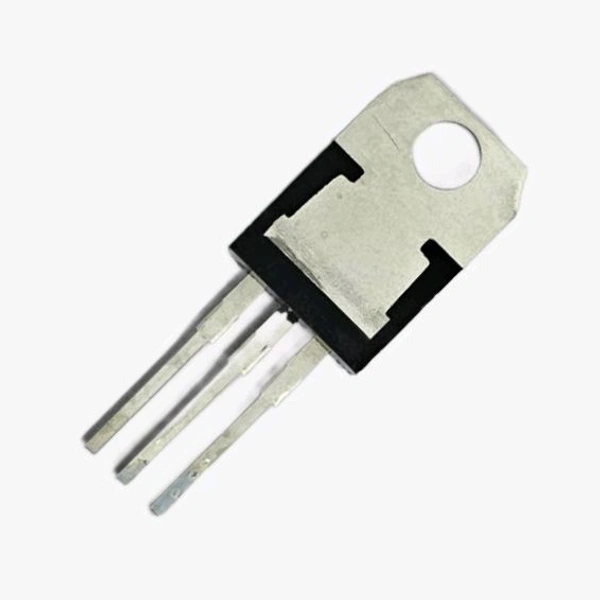

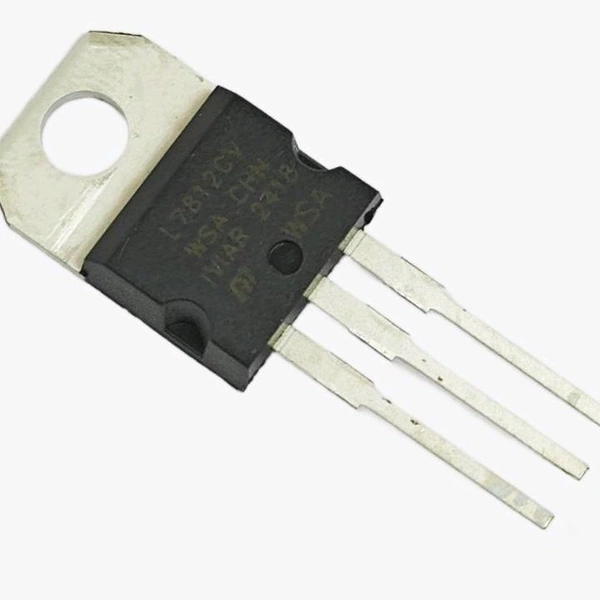

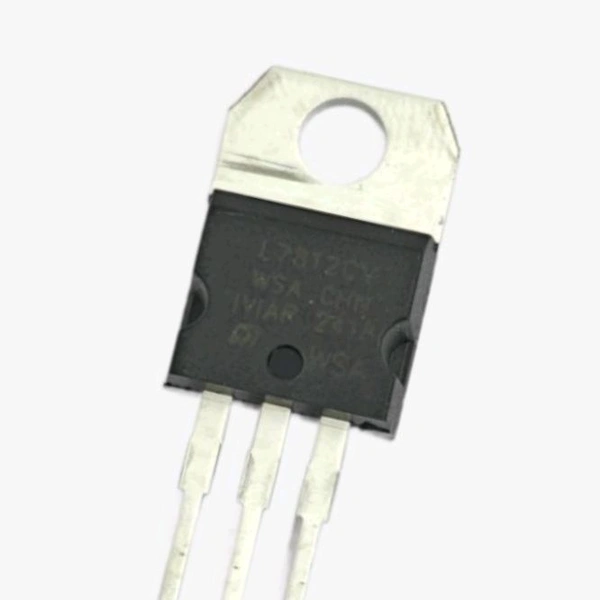

LM7812 12V Linear Positive Voltage Regulator – TO-220 Package Q1 C13

LM7812 12V Linear Positive Voltage Regulator – TO-220 Package Q1 C13

Name: LM7812 12V Linear Positive Voltage Regulator – TO-220 Package Q1 C13
SKU: SKU-6081
Price: 21 INR
Availability: InStock

₹ 21

₹ 28

25%

Delivery Options

Get delivery at your doorstep

The 7812CV is a fixed 12V positive voltage regulator from the popular 78xx series. It provides a stable 12V output from a higher input voltage (typically 14V to 35V), making it ideal for power supplies, microcontroller-based systems, and regulated DC power circuits. It includes internal current limiting, thermal shutdown, and safe operating area protection.

Features of 7812CV Voltage Regulator:

Fixed 12V regulated output

Input voltage range: up to 35V

Output current up to 1.5A

Built-in thermal overload protection

Short-circuit current limiting

Reliable and low-cost solution for DC regulation

TO-220 package for easy mounting and heat dissipation

Compatible with heat sinks

Specifications of 7812CV Voltage Regulator:

Model: 7812CV

Type: Linear Voltage Regulator

Output Voltage: +12V

Output Current: 1.5A (max)

Input Voltage: 14V to 35V

Dropout Voltage: ~2V

Package: TO-220

Pin Configuration: Input, Ground, Output

Mounting Type: Through-hole

Package Includes:

1 × 7812CV – 12V Positive Voltage Regulator – TO-220 Package
