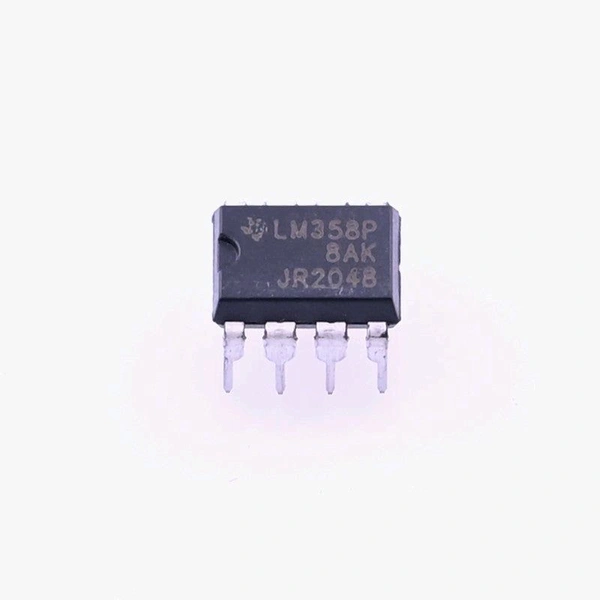

LM358 Dual Op Amp IC Q8 C2

Name: LM358 Dual Op Amp IC Q8 C2
SKU: SKU-6176
Price: 16 INR
Availability: InStock

₹ 16

₹ 18

11%

Delivery Options

Get delivery at your doorstep

Product Not Available

The LM358 is a dual Operational Amplifier IC. It consists of two independent, high gain and internally frequency compensated operational amplifiers. It can run on a single power supply as well as split power supplies. The LM358 series is equivalent to one−half of an LM324. They can operate at supply voltages as low as 3.0 V or as high as 32 V. Current consumption is about 700uA. Applications include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply systems.

Product Description of LM358 Dual Op Amp IC

LM358 Dual Op Amp IC

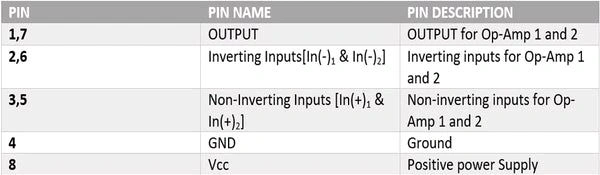

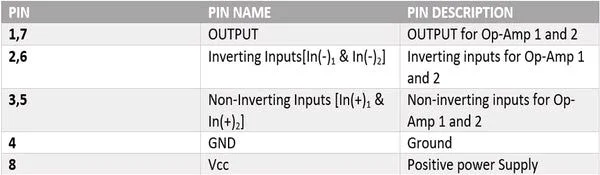

PIN DESCRIPTION

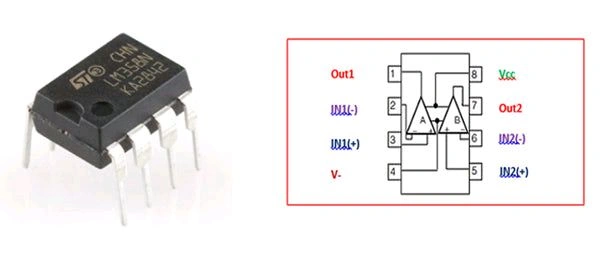

LM358-Dual-Op-Amp

Features of LM358-Dual Op Amp IC

Single Supply Operation: 3.0 V to 32 V

Single and Split Supply Operation

Low power drain; suitable for battery usage

Internally Compensated

Common Mode Range Extends to Negative Supply

Large DC voltage gain

Operating Ambient Temperature Range: 0 to 70 °C

Package Contents

1× LM358 Dual Op Amp IC
