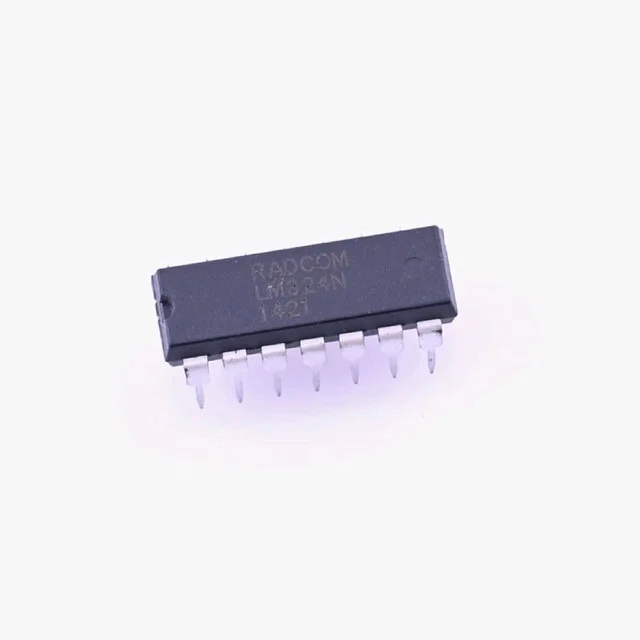

LM324 - Low Power Quad Op-Amp IC Q8 C2LM324 - Low Power Quad Op-Amp IC Q8 C2LM324 - Low Power Quad Op-Amp IC Q8 C2
LM324 - Low Power Quad Op-Amp IC Q8 C2
LM324 - Low Power Quad Op-Amp IC Q8 C2
LM324 - Low Power Quad Op-Amp IC Q8 C2

LM324 - Low Power Quad Op-Amp IC Q8 C2

₹ 19

₹ 20

5%

Whatsapp
Facebook

Out of Stock

Delivery Options

Get delivery at your doorstep

Out of Stock
The LM324 IC is a low-cost, low-power IC with four Operational Amplifiers in one package. It is a Quad Op-Amp IC. The four Op-Amps are independent, have a high-gain and a wide operating voltage from 3V to 32V for single supply and 1.5V to 16V for dual supply. The IC has a supply current of about 700uA. The LM324 IC is commonly used as a Summing amplifier, Multivibrators, oscillator, transducer amplifier, DC Gain Block and as a conventional amplifier.



Product Description of LM324 - Low Power Quad Op-Amp IC

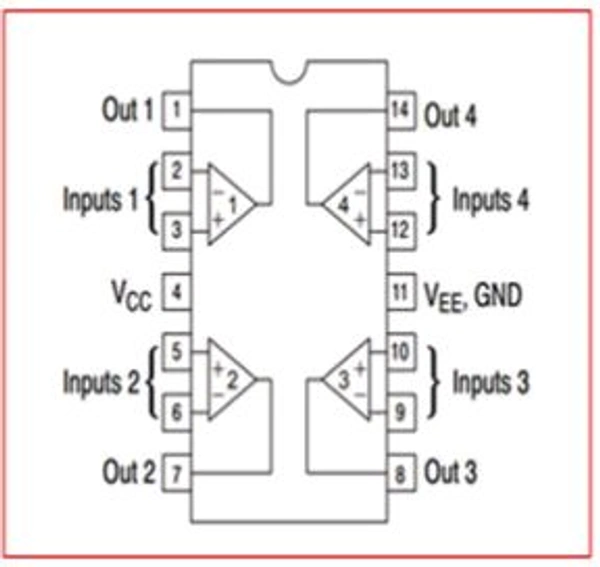

LM324 Op-Amp IC Pinout

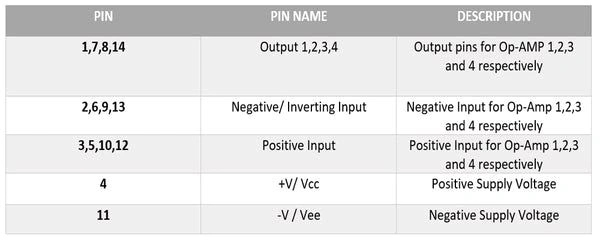

LM324 IC PIN DESCRIPTION

Below is a table describing the individual pins of the IC.

LM324



Features of LM324 - Low Power Quad Op-Amp IC

Four Amplifiers Per Package
Short Circuited Protected Outputs
True Differential Input Stage
Single Supply Operation: 3.0 V to 32 V or Dual Supplies ±1.5 V to ±16 V
Differential Input Voltage Range Equal to the Power Supply Voltage
Unity-Gain Bandwidth: 1MHz (Typ)
Internally Frequency Compensated for Unity Gain
DC Voltage Gain :100dB (Typ)
Input Bias Current : 45nA (Typ)
Input Offset Voltage : 2mV (Typ)
Supply current : ~700uA
Operating ambient temperature : 0˚C to 70˚C
Soldering pin temperature : 260 ˚C (for 10 seconds – prescribed)
Replacement for Industry Types 124, 224, 324
Package Contents

1× LM324 - Low Power Quad Op-Amp IC
