LilyPad ATmega328P 16M Development Board - Compatible with Arduino Q2 C1

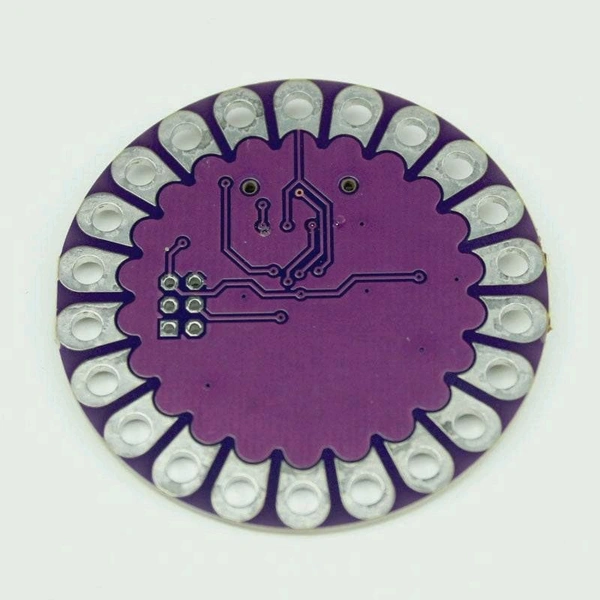

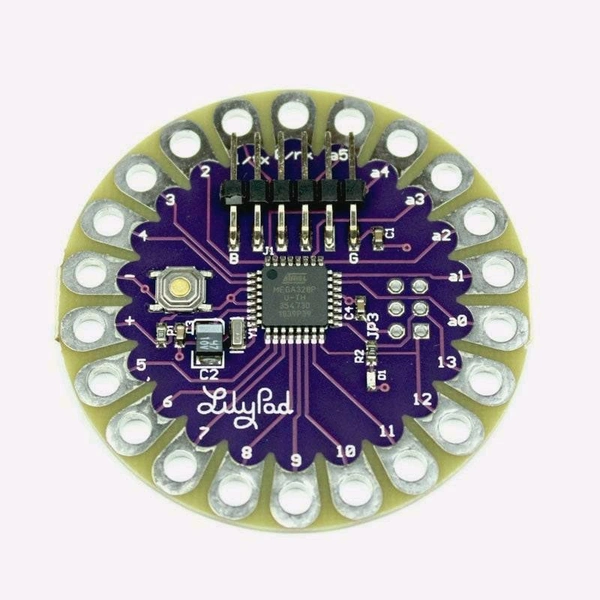

This Lilypad 328 16M board has a flat bottom and large pinholes making it easy for being sewn into clothing. It is commonly used in e-textile and other wearable electronics applications. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile.

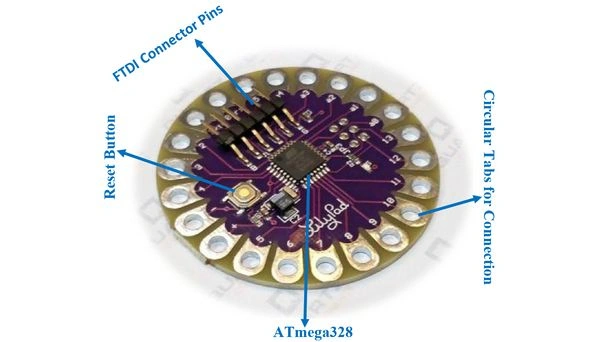

Arduino LilyPad



Features and Specifications:

Microcontroller: ATmega328V

Operating Voltage Range: 2.7-5.5 V

Input Voltage : 2.7-5.5 V

Digital I/O Pins:14 Nos (of which 6 provide PWM output)

Analog Input Pins: 6

PWM Channels: 6

DC Current per I/O Pin:40 mA

Flash Memory: 16 KB (of which 2 KB used by bootloader)

SRAM: 1 KB

EEPROM: 512 bytes

Clock Speed: 8 MHz



Washability: Wash at your own risk. We recommend washing projects by hand with a mild detergent. Drip dry. Make sure you remove your power supply first!
