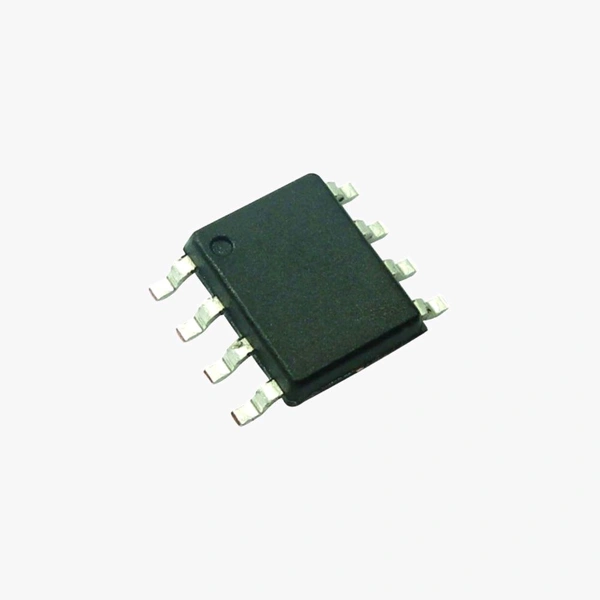

L9110S Motor Control Driver IC - SOP-8 SMD Package Q11 C5

L9110S Motor Driver IC Features:

Dual-channel motor driver with independent control.

Supports DC motors and 4-wire 2-phase stepper motors.

Continuous current handling up to 800mA per channel.

Wide operating voltage range: 2.5V to 12V.

Low power consumption and high efficiency.

Integrated thermal protection for added reliability.

Compact SOP-8 SMD package for easy PCB integration.

L9110S IC Specifications:

Operating Voltage: 2.5V to 12V DC

Maximum Output Current: 800mA (continuous)

Output Channels: 2 independent channels

Control Inputs: PWM and direction control for motor speed and direction

Package Type: SOP-8 SMD

L9110S SMD IC Pin Configuration:

VCC: Power supply input (2.5V to 12V).

GND: Ground connection.

AIA: Input signal for Channel A control.

AIB: Input signal for Channel A control.

BIA: Input signal for Channel B control.

BIB: Input signal for Channel B control.

OA1: Output for Channel A (motor terminal).

OB1: Output for Channel B (motor terminal).

Package Includes:

1 x L9110S Motor Control Driver IC - SOP-8 SMD Package
