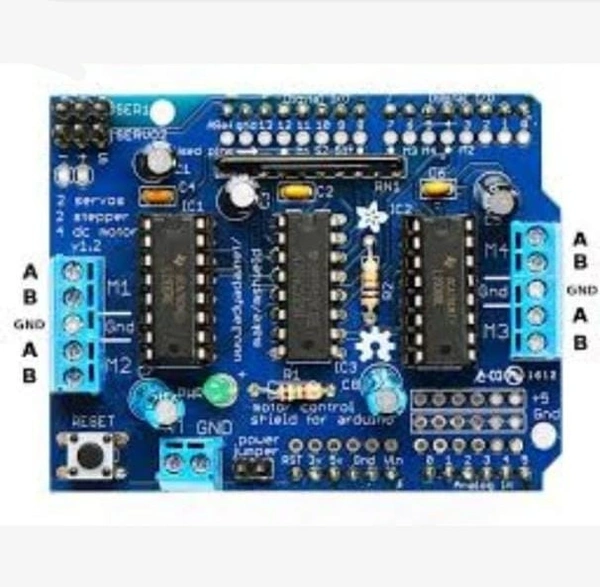

L293D Motor Driver Shield for Arduino

Product Specifications:

• Product type: Motor driver shield
• Motor controller ice: L293D
• Suitable for motor: almost every motor
• Colour: as shown in image
• Package contains: 1 piece of L293d motor driver shield

L293D Motor Driver Shield is most suitable for Arduino and it is based on L293D IC (it is a half-bridge driver). The motor shield is a full-featured motor shield that can power any simple and complex motors which means it can drive almost every motor and makes the project simple to make. It can control 2-6 motors at a time in any direction or speed.

Specification

Operating voltage: 5V ? 12V

Maximum current: 600mA in each channel

Peak output current: 1.2A

Typical output current: 1A

8-bit serial-in parallel out shift

output: 3 state
