L293D Motor Driver Module Q11 C5

Name: L293D Motor Driver Module Q11 C5
SKU: SKU-6372
Price: 120 INR
Availability: InStock

₹ 120

₹ 140

14%

Delivery Options

Get delivery at your doorstep

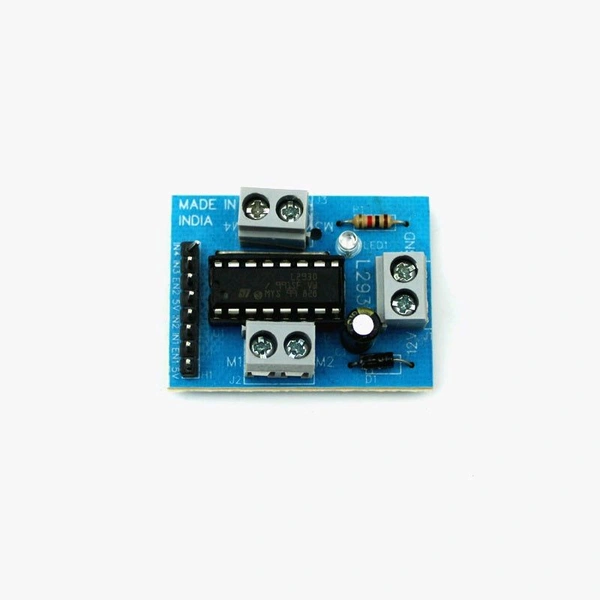

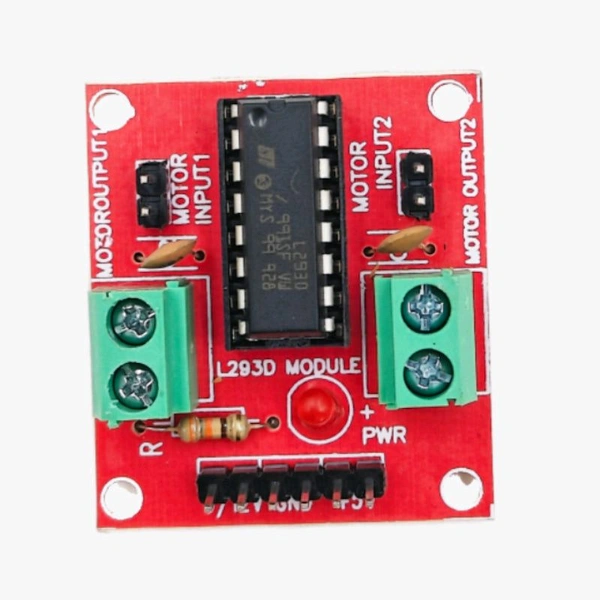

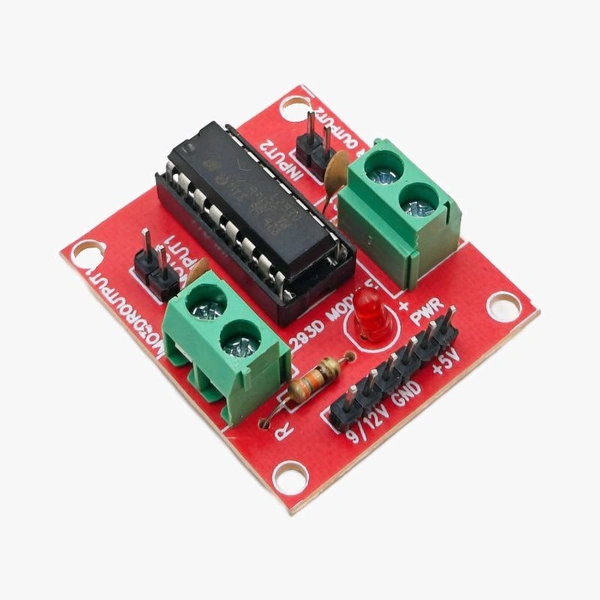

The major component in this L293D Motor Driver module is the L293D Motor Driver IC. This IC is a 16 pin half H bridge motor driver IC. It is capable of driving two DC motors or stepper motors at the same time. The direction of both the motors can be controlled independently of each other but if you just want to turn motor on or off, it can do that with four DC motors. It is used to drive the motors with voltage ratings from 5V to 36V and with a total DC current of 600mA. This l293d motor driver board can be used to drive high current circuits using digital circuits like 555 Timer, MOSFET, or microcontrollers like Arduino, Raspberry Pi, PIC, etc. It is good for robotics projects and other mechatronic projects like robot arms, follower robots, RF cars, etc.

Specifications

Can be used to run Two DC or stepper motors with the same IC.

Speed and Direction control is possible of both the motors

Motor voltage output VCC: 4.5V to 36V

Maximum Peak motor current: 1.2A

Maximum Continuous Motor Current: 600mA

Supply Voltage to the IC: 4.5V to 7V

Transition time: 300ns (at 5Vand 24V)

High Noise Immunity

Screw terminals to easily connect the motors

Product Description

Whenever you use any different l293d motor driver and integrate with any microcontroller you will need to supply different voltage supply for microcontroller 5v and for motor driver 12v ,but in our l293d motor driver case you need to supply only 12volt supply and through motor driver your microcontroller also powered with 5v which comes from pin no 8 of our l293d motor driver

Package Contents

1×L293D Motor Driver Module
