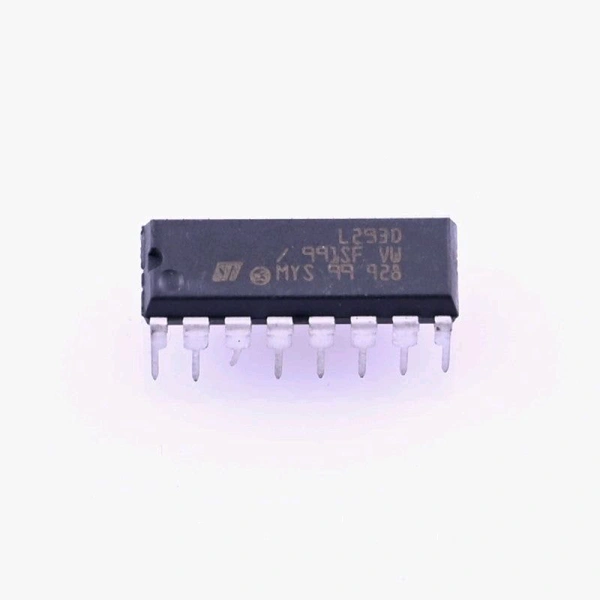

L293D Motor Driver IC Q11 C5

Name: L293D Motor Driver IC Q11 C5
SKU: SKU-6373
Price: 35 INR
Availability: InStock

₹ 35

₹ 40

13%

Delivery Options

Get delivery at your doorstep

The L293D is a quadruple high-current half-H driver IC that provides bidirectional drive currents to loads such as relays, solenoid, DC, and stepping motors. It is also suitable for use in switching applications at frequencies up to 5 kHz. The L293D IC is designed to control motors operating from 4.5V to 36V with drive currents of up to 600mA.

Product Description of L293D Motor Driver IC

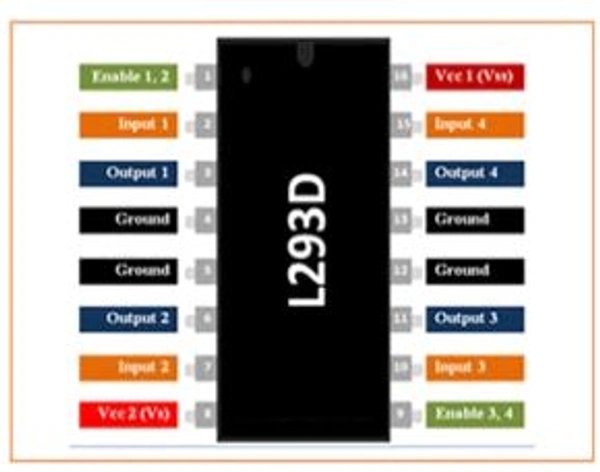

L293D Motor Driver IC Pinout

Features of L293D Motor Driver IC

Can be used to run Two DC motors simultaneously

Speed and Direction control is possible

600-mA Output Current Capability Per Driver

High-Noise-Immunity Inputs

Internal ESD Protection

Operates with a single supply of 4.5 V to 36 V

Operating Temperature: 0 to 70 °C

Package Contents

1 x L293D Motor Driver IC
