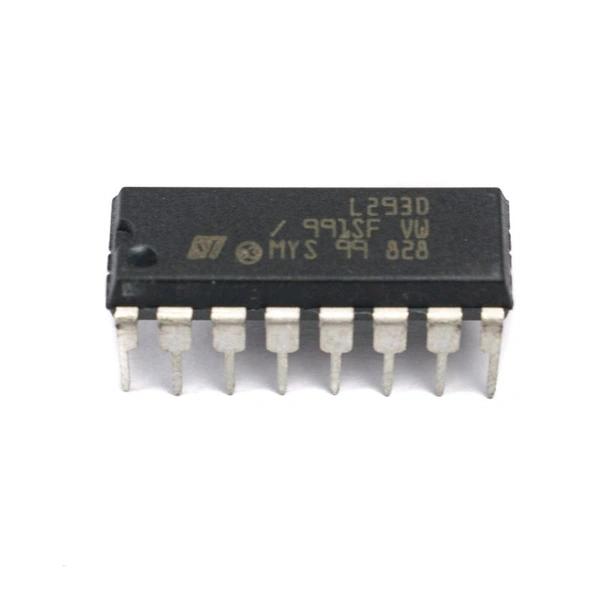

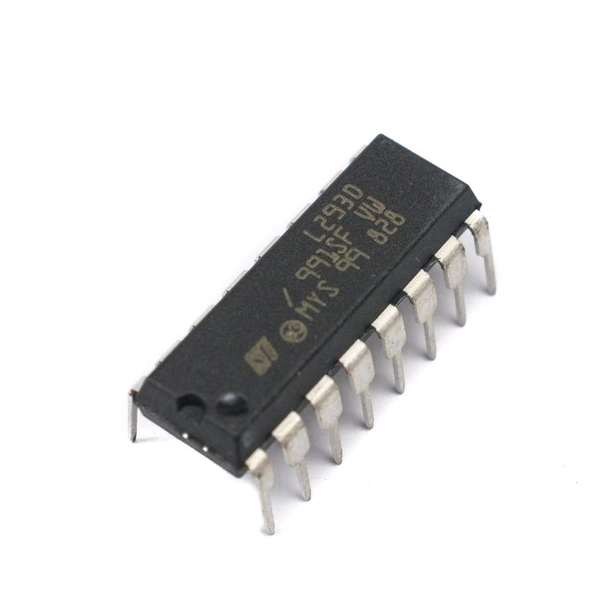

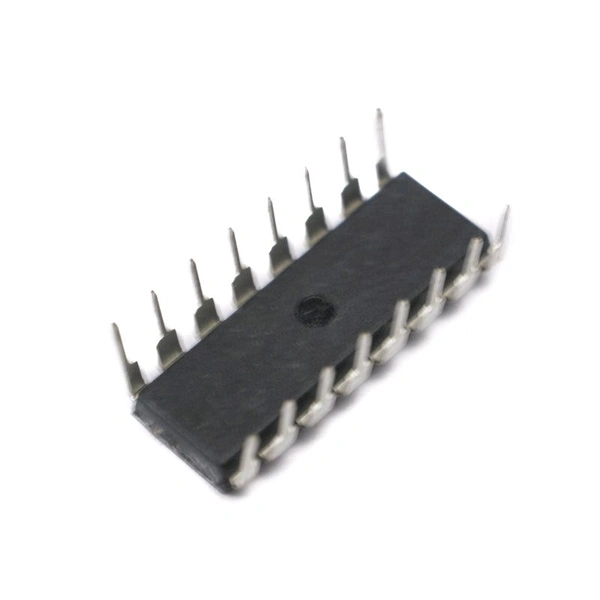

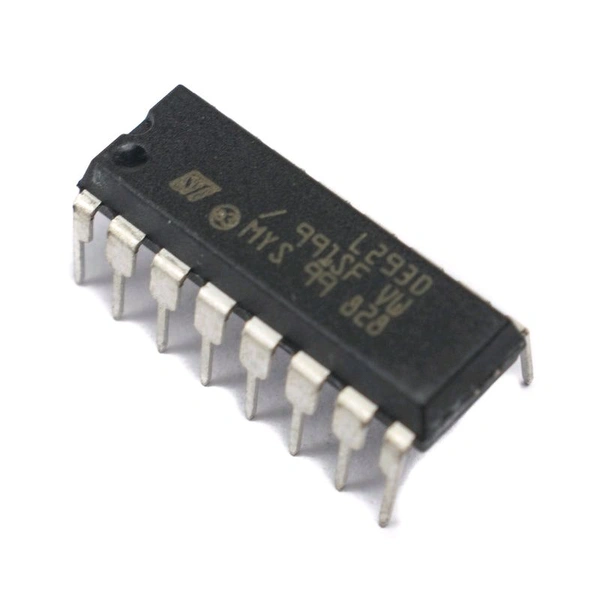

L293d Motor Driver IC H13 A5

Features

It can be used to run Two DC motors with the same IC.

Speed and Direction control is possible

In this, automatic thermal shutdown is available

Applications

It is used to drive high current Motors using Digital Circuits

It can be used to drive Stepper motors

The high current LEDs can be driven by this

Used in the relay Driver module

Specification

Part Number L293d

Motor Voltage (VCC2) 4.5 V to 36 V

 Maximum peak motor current 1.2 A

Maximum continuous motor current 600 mA

Supply voltage to VCC1 4.5 V to 7 V

Transition time 300 nS
