KSD301 Thermostat 70°C temperature thermal Switch - Normally Close H2 A10KSD301 Thermostat 70°C temperature thermal Switch - Normally Close H2 A10KSD301 Thermostat 70°C temperature thermal Switch - Normally Close H2 A10
KSD301 Thermostat 70°C temperature thermal Switch - Normally Close H2 A10
KSD301 Thermostat 70°C temperature thermal Switch - Normally Close H2 A10
KSD301 Thermostat 70°C temperature thermal Switch - Normally Close H2 A10

KSD301 Thermostat 70°C temperature thermal Switch - Normally Close H2 A10

₹ 40

₹ 45

11%

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep

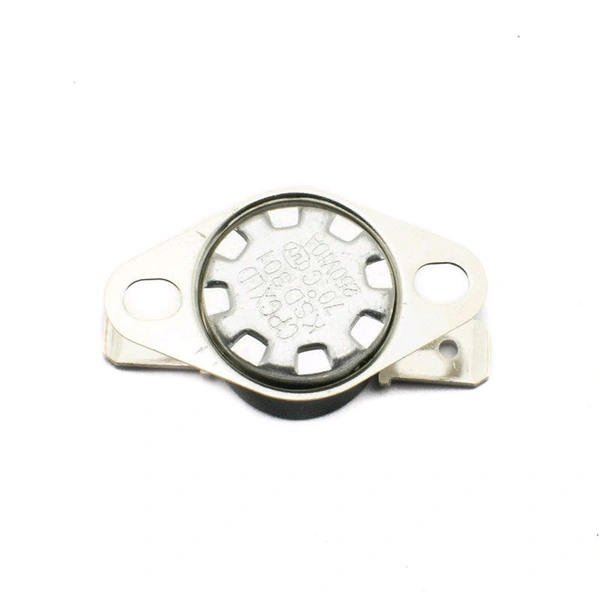

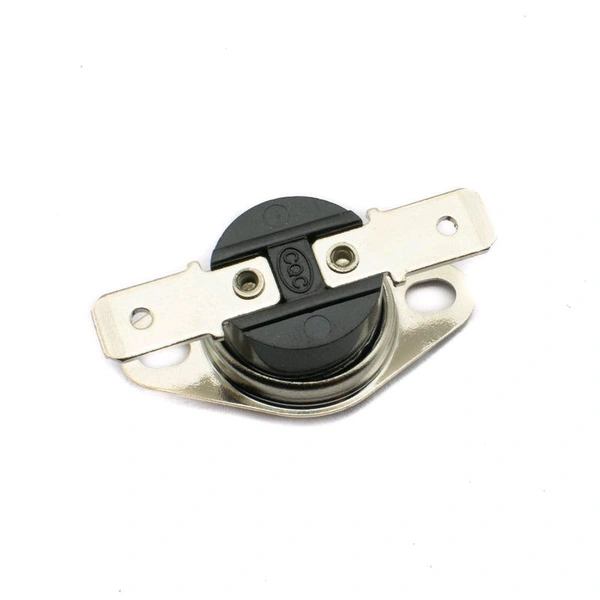

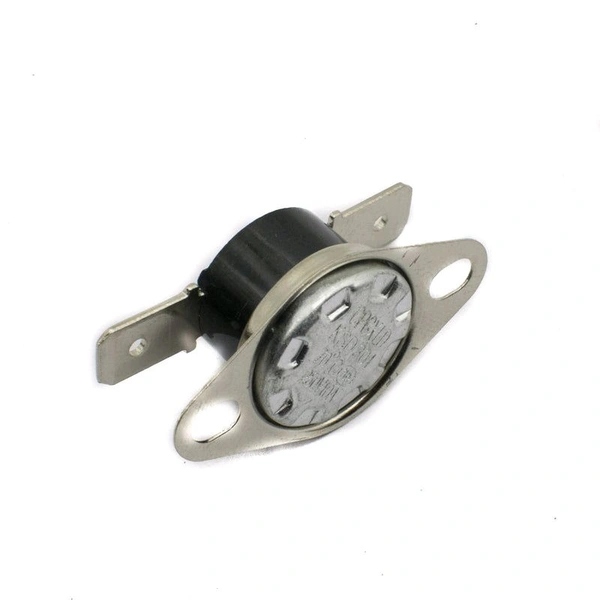

KSD301 70°C Thermal Control Switch 250V 10A NO (Normally Close) The original state of temperature control switch contact is open and closed when the temperature sensing exceeds the rated temperature. This KSD301 thermostat is used widely for coffee makers, water heaters, immersion heaters, electric cookers, microwave ovens, automatic toasters, etc. It is closed until the temperature reaches 70 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances. Widely used for temperature control or protection for household electric appliances.

Features

Double metal chip
Contact sensor, speed dynamic type
Sensitive, reliable, safe,
Stable action temperature
Long service life
No arc phenomenon automatically reset
Specifications
Rated Voltage

250V

Rated Current

10A

Model

KSD 301

Action type

Normally Close

Action Temperature

70°C

Material

Metal

Diameter

15.6mm

Length*Height

34.1*11.8mm
