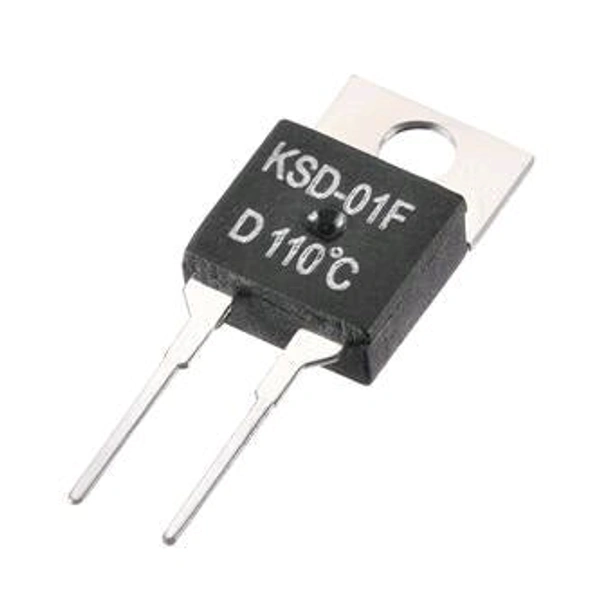

KSD01F-110 Temperature Switch TO-220 Package 24V, 3A H2 A10

Name: KSD01F-110 Temperature Switch TO-220 Package 24V, 3A H2 A10
SKU: SKU-6594
Price: 89 INR
Availability: InStock

₹ 89

₹ 109

18%

Delivery Options

Get delivery at your doorstep

KSD01F-110 is a TO-220-packaged Temperature Switch/Thermal switch. The Calibrated Bimetal will quickly connect the circuits (usually opened) when the outside temperature is too high. When the temperature drops to the reset temperature, the bimetal will revert to the reset position. The protection of the safety of the product temperature is frequently ensured in this way. Common applications included the alarm system circuit ON/OFF when overheated electrical equipment, electronic items, power supplies, vehicles, medical equipment, test equipment, home appliances, and circuit boards for temperature management and thermal overload protection.

Features

KSD-01F-100 is a Bimetal Temperature Control Switch Thermostat.

General-purpose low cost, compact, large capacity, minute current thermostat.

Apply to circuit board for temperature control or thermal overload protection use.

Specifications

Model KSD01F-110

Type Temperature Switch

Package Type TO-220

Contact load 220V AC 1A or 24V DC 3A

Contact resistance 50mΩ

Temperature 110°C

Insulation value 100MΩ (500VDC)

Dielectric strength 1500V / DC, 60Hz

Standard tolerance ± 5
