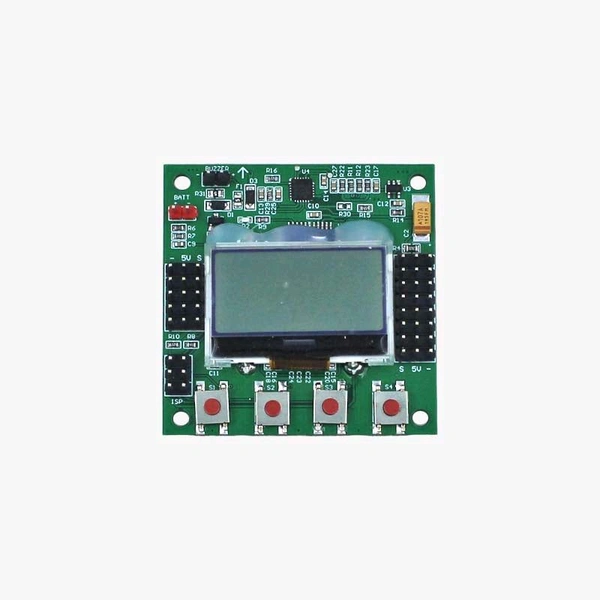

KK2.1.5 Multi-Rotor LCD Flight Controller Board with 6050MPU and Atmel Mega644PA Q20 C2

The LCD screen and built-in software make install and setup easier than ever. The KK gyro system has been updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function. At the heart of the KK 2 is an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64k of memory.

Features:

LCD Display: Intuitive interface for easy setup and adjustments.

Stable Flight Performance: Ensures smooth and reliable flight maneuvers.

Multiple Flight Modes: Acro, self-leveling, and altitude hold options for versatile flying experiences.

Auto-Leveling Calibration: Effortlessly fine-tune your multi-rotor's stability.

Built-in BEC: Simplifies power distribution to connected peripherals.

Compatible with Various Frames: Ideal for quadcopters and multi-rotor aircraft of different sizes.

Firmware Upgradeable: Stay up-to-date with future enhancements.

Specifications:

Processor: Atmel Mega644PA 8-bit AVR RISC-based microcontroller

Gyro/Accelerometer: MPU6050

Voltage Input: 4.8V - 6.0V (2S LiPo recommended)

Motor Outputs: Supports up to 8 motors (2-8 multi-rotor configuration)

Dimensions: 52mm x 52mm x 12mm

Weight: 41g (including case)

Firmware: Preloaded with stable version

Package Includes:

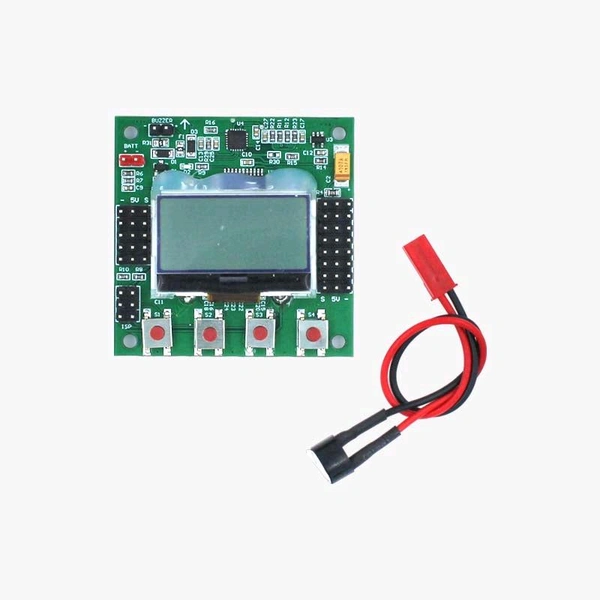

1 x KK2.1.5 Multi-Rotor LCD Flight Controller Board

1 x Piezo buzzer and connector
