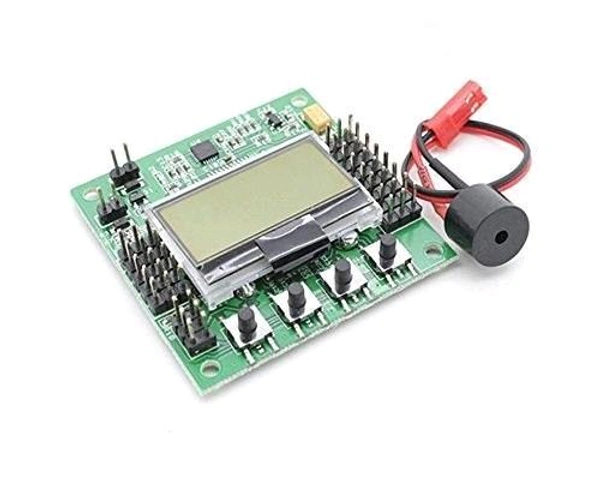

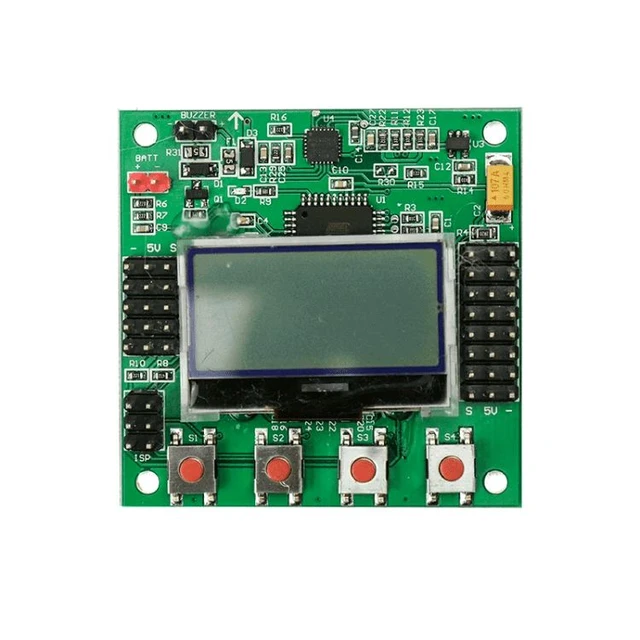

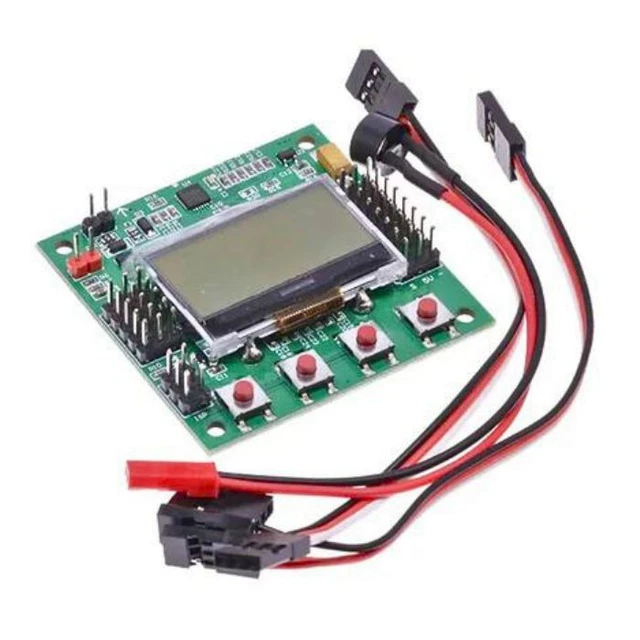

KK board 2.1.5 Multi-Rotor LCD Flight Control Board C7 B4

The KK 2.1.5 Flight controller board is a highly efficient flight controller for drones that is designed to manage the flight of various multi-rotor aircraft, such as Tricopters, Quadcopters or drones, and Hexacopters.

Its primary function is to stabilize the aircraft during flight by taking signals from onboard gyroscopes for roll, pitch, and yaw, and passing them to the Atmega324PA processor.

The processor then processes the signals according to the user's firmware selection and sends the control signals to the Electronic Speed Controllers (ESCs), making it one of the best flight controllers for drones.

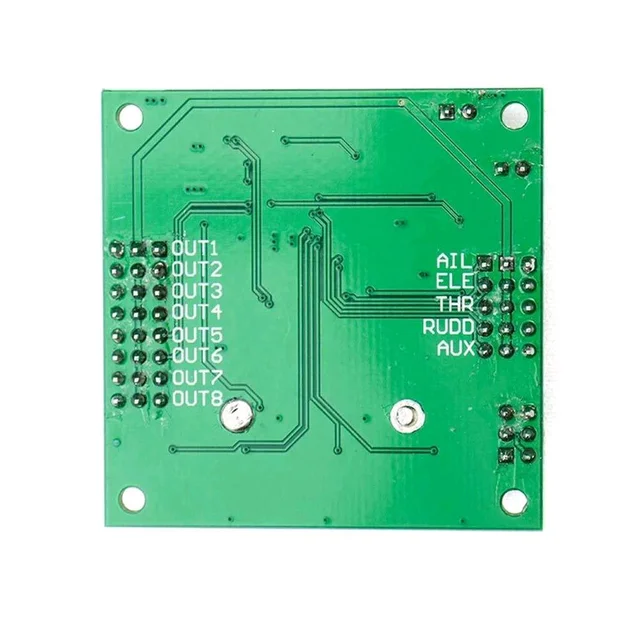

The KK2.1.5 board receives signals from the radio system via a receiver and passes these signals along with stabilization signals to the Atmega324PA IC via aileron, elevator, throttle, and rudder user demand inputs.

This information is then processed and sent to the ESCs, which adjust the rotational speed of each motor to control flight orientation, making it an excellent flight controller for drone enthusiasts.

The kk2.1.5 flight controller board is designed with the beginner in mind, with a sensitive MPU 6050 gyro system that allows for the addition of an auto-level function.

It also features an ATMEL Mega 644PA 8-bit AVR RISC-based microcontroller with 64k of memory, as well as a voltage detection header and a piezo buzzer for audio warning when activating or deactivating the board, making it one of the best flight controllers for drones available on the market.

Additionally, the board includes a 6-pin USBasp AVR programming interface for easy software updates, making the kk flight controller board an ideal choice for those looking for the best flight controller for drones.

How To Set Up KK 2.1.5 Flight Controller

For those unsure of how to set up a KK Flight Control board, the KK2.1 Flight Control Board is the perfect solution, offering pre-installed firmware for a variety of multi-rotor craft types.

Simply select your aircraft type, motor layout, and propeller direction, calibrate your ESCs and radio, and follow the on-screen prompts for easy set-up.

Also check our flight controller for drone collection, features a variety of drone flight controllers, including popular models.

Features

Most stable KK Board ever.

6050 MPU system based.

Easy graphical interfacing with the receiver.

In Built firmware.

Easy to use for beginners.

Applications:

Quadcopter Stabilizer

Multirotor Aircraft Flight Controller

Package Includes:

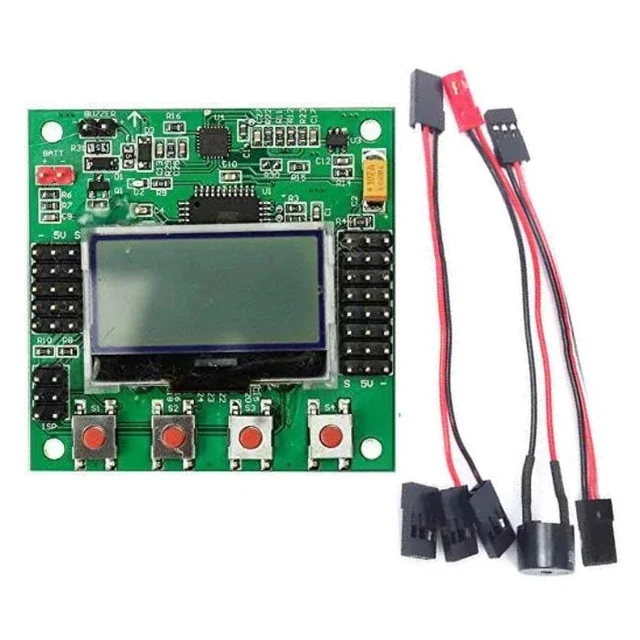

1 x KK 2.1.5 Flight Controller Board

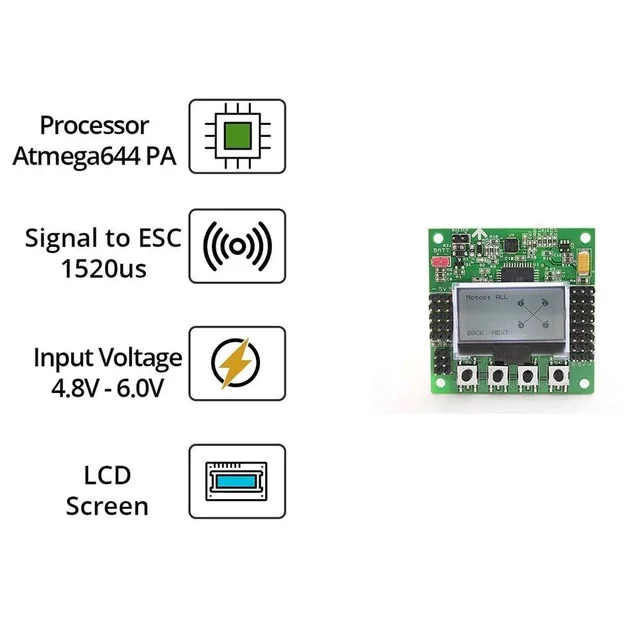

SPECIFICATIONS:

Model KK2.1.5 Flight Controller

IC Atmega644 PA

Input Voltage 4.8V-6.0V

AVR Interface 6 Pin

Dimensions 13 x 10 x 4.9 cm

Weight 20 grams
