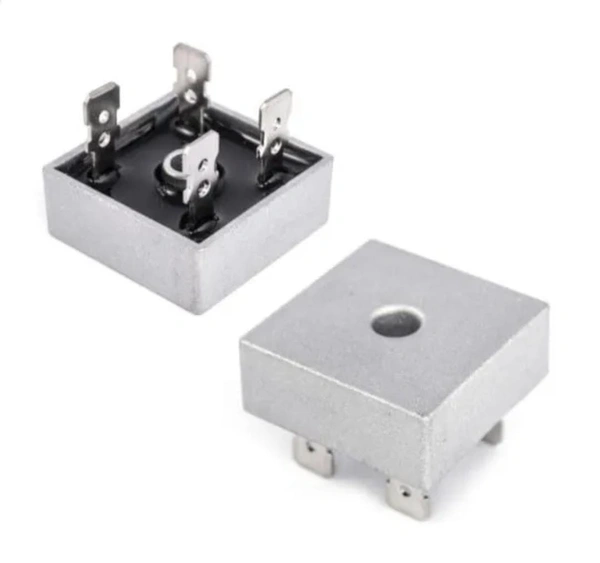

KBPC3510 35A 1000V Single Phase Bridge Rectifier

Product Details

• Product: KBPC3510 single-phase rectifier
• Polarity: marked on the device
• Number of pins: 4
• Mounting: snap-on, wrap-around, solder, and PCB mounting
• Case: Metal
• Dimension: 29mm x 29mm x 11.5mm
• Package contains: 1 x KBPC3510

Specificatio

Maximum peak recurrent reverse voltage: 1000V

Maximum RMS bridge input voltage: 700V</li>

Maximum DC blocking voltage: 1000V</li>

Maximum forward rectified output current: 35V

Peak forward surge current 8.3 ms half sine-wave superimposed on rated load: 400A</li>

Maximum forward voltage drop: 1.1V (per elements at 17.5A DC)

Maximum DC reverse current at rated DC blocking voltage per elements: 10�A

Rating for fusing (I2T t&lt;8.3ms): 664 A2sec

Operating temperature: -55? to 150?

Features

Metal case for maximum heat dissipation

Low forward voltage drop

High-temperature soldering capacity

Universal 4 way terminal: snap-on wrap-around solder and PCB mounting

Polarity marked on the device
