JQ6500 Voice Sound Module 16Mbit Music MP3 Play MCU Serial Control Module Q7 C6

JQ6500 Voice Sound Module 16Mbit Music MP3 Play MCU Serial Control Module Q7 C6

Name: JQ6500 Voice Sound Module 16Mbit Music MP3 Play MCU Serial Control Module Q7 C6
SKU: SKU-6297
Price: 349 INR
Availability: InStock

₹ 349

₹ 399

13%

Delivery Options

Get delivery at your doorstep

To decode the MP3, hard coded MP3 or WMV format files into the audible voice format, you will need a decoder IC to play the files on the speakers. This JQ6500 Voice Sound Module is perfect for these kinds of applications where you need to broadcast a message on the speaker like fire alarm, train and bus alert systems, business hall prompts, equipment failure alarms etc. It supports the following sampling rate (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48. It has 24 bits Digital to Analog Converter output with a dynamic range of 90dB. Through a simple serial command to complete the playback of the specified music, and how to play music and other functions, without cumbersome the underlying operation, easy to use, stable and reliable is the biggest feature of this product. In addition, the chip is also a deep customization of products, designed for fixed voice playback in the field of low-cost solutions.

Specifications

Support sampling rate (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48

24-bit DAC output, dynamic range support 90dB, SNR support 85dB

Full support FAT16, FAT32 file system, the largest support 32G TF card, support 32G U disk, 64M bytes NORFLASH

A variety of control mode, parallel port control mode, serial port mode, AD button control mode

You can plug in SPI flash, connect the computer can display spi flash letter to update the content

Can be controlled through the microcontroller serial port to play the specified music

Product Description

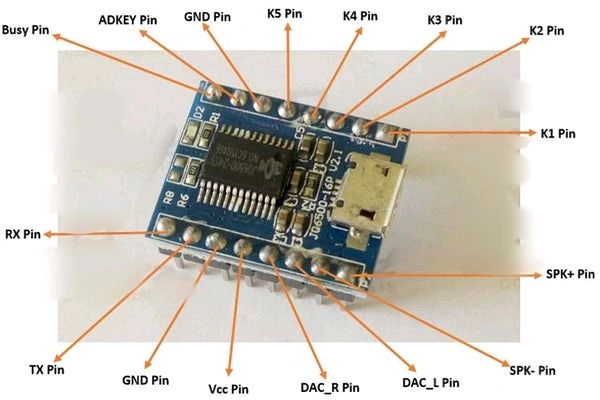

JQ6500-Voice-Sound-Module

Package Contents

1× JQ6500 Voice Sound Module
