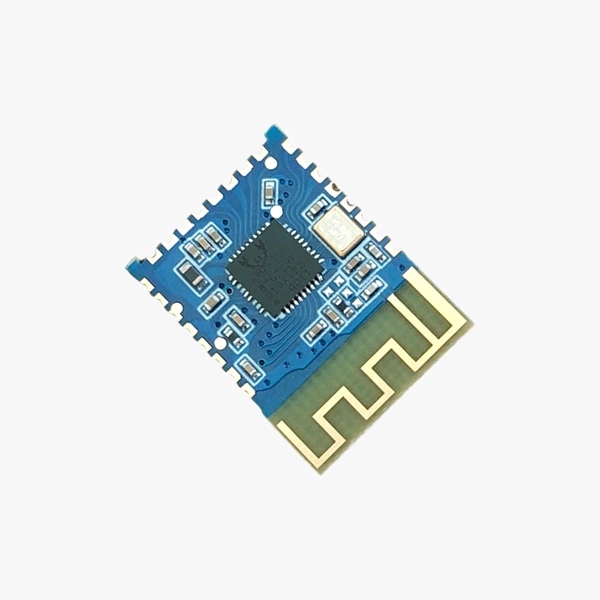

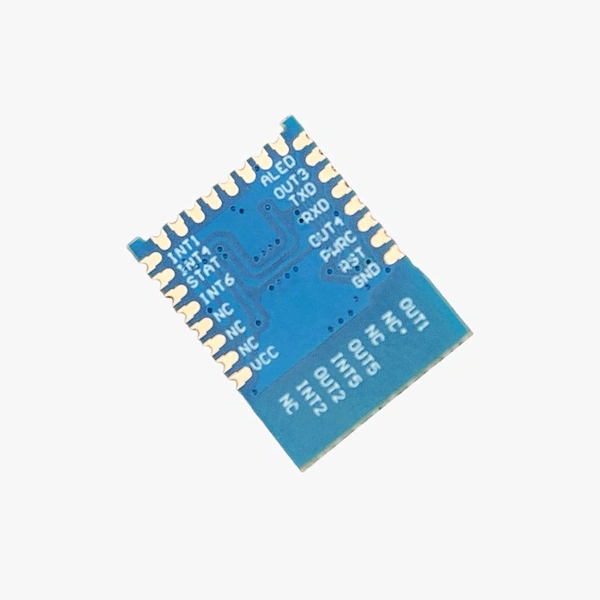

JDY-25M Bluetooth 5.0 BLE5.0 Mesh Networking Module Q5 C2

Key Features:

Master-Slave Transparent Transmission: Effortlessly supports data transmission between modules and mobile devices (iOS and Android), with a working current of approximately 1mA.

iBeacon Functionality: Enables ultra-low power iBeacon and BLE probe functions, enhancing device detection and interaction.

MESH Networking: Supports extensive MESH network communication with a maximum speed of 50ms for 16-byte data transmission. The network configuration is simplified with automatic networking via NETID and short address setup.

Multi-Connected Slave Mode: Allows simultaneous connections with multiple mobile phones for high-speed transparent data transmission.

Remote Control and Mixed Connections: Facilitates network remote control and mixed master-slave connections, enabling concurrent operations with multiple devices.

Technical Specifications:

Working Voltage: 1.9 – 3.6V

Operating Temperature: -40 to 85°C

Maximum Transmitting Power: +4dBm

Communication Distance: Up to 80 meters

Bluetooth Version: BLE5.0

Antenna: PCB board antenna with -3dBi gain

Receiving Sensitivity: -96dBm

Communication Interface: UART

Module Size: 27mm x 12.88mm x 1.6mm

Communication Speed: 8k bytes/second between slave and app; 50ms for 16-byte data in MESH mode

Power Consumption:

Wake-up current (transparent transmission, non-MESH): About 1mA

Light sleep current (non-MESH, with broadcast): Within 200uA (varies with broadcast interval)

Wake-up communication current (MESH mode): About 4mA

Sleep current (MESH mode): 3uA

Deep Sleep Mode: 3uA

Datasheet/Specifications

Package Includes:

1 x JDY-25M Bluetooth 5.0 BLE5.0 Mesh Networking Module
