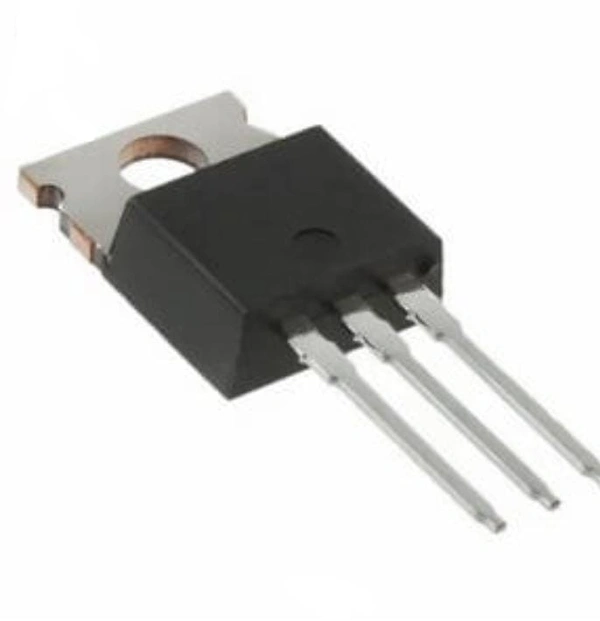

IRFZ48N 55V 64A N-Channel Power MOSFET

Product Details

• Product: IRFZ48N
• Transistor type: MOSFET
• Control channel: N-channel
• No of pins: 3
• Package: TO-220
• Mounting type: through hole
• Package contains: 1 x IRFZ48N 55V 64A N-Channel Power MOSFET

Features

High dv/dt capability

Fully avalanche rated

Gate charge minimized

Fast switching

Ease of paralleling

Simple drive requirement

Ultra low on-resistance

Very low thermal resistance

175? operating temperature

Specification

Drain-source voltage: 60V

Drain-gate voltage: 60V

Gate-source voltage: �20V

Continuous drain current:

       At 25?: 64A

At 100?: 45A

Pulsed drain current: 290A

Repetitive avalanche current: 32A

Maximum power dissipation: 130W

Operating temperature: -55? to 175?

Application

High current, high-speed switching

Switch-mode power supply (SMPS)

DC-AC converters for power supply and motor driver
