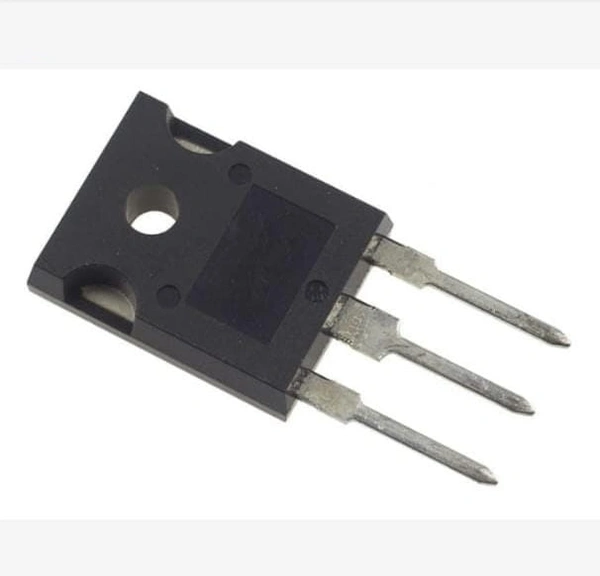

IRFP140N 100V 33A N-Channel Power MOSFET - TO-247 Package

Product Details

• Product: IRFP140N
• Transistor type: MOSFET
• Control channel: N-channel
• No of pins: 3
• Package: TO-247
• Mounting type: through hole
• Package contains: 1 x IRFP140N 100V 33A N-Channel Power MOSFET

Features

Dynamic dv/dt capability

Fully avalanche rated

Isolated central mounting hole

Fast switching

Ease of paralleling

Simple drive requirement

 Ultra low on-resistance

Very low thermal resistance

175? operating temperature

Specification

Drain-source voltage: 100V

Drain-gate voltage: 100V

Gate-source voltage: �20V

Continuous drain current:

At 25?: 33A

At 100?: 23A

Pulsed drain current: 110A

Repetitive avalanche current: 31A

Maximum power dissipation: 180W

Operating temperature: -55? to 175?

Application

High current high speed switching

Switch mode power supply (SMPS)

DC-AC converters for power supply and motor driver
