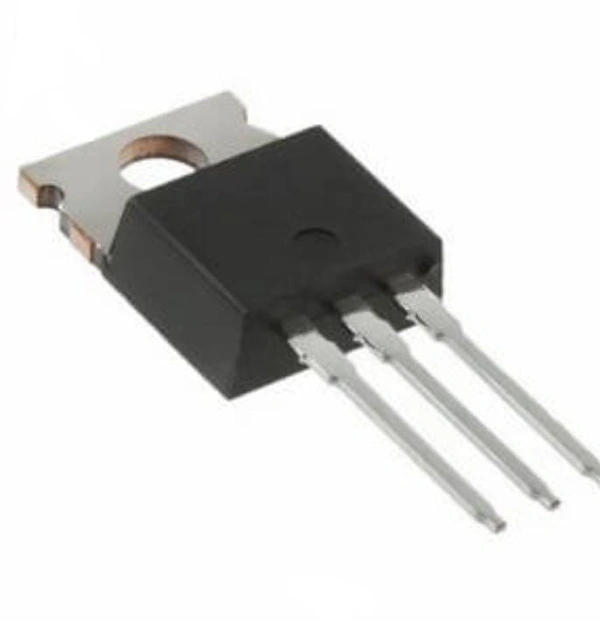

IRF9540N 100V 23A P-Channel Power MOSFET

Product Details

• Product: IRF9540N
• Transistor type: MOSFET
• Control channel: P-Channel
• No of pins: 3
• Package: TO-220AB
• Mounting type: through hole
• Package contains: 1 x IRF9540N 100V 23A P-Channel Power MOSFET

Features

Dynamic dv/dt capability

Advanced process technology

Fully avalanche rated

Fast switching

175? operating temperature

Specification

Drain-source voltage: -100V

Drain-gate voltage: -100V

Gate-source voltage: �20V

Continuous drain current:

At 25?: -23A

At 100?: -16A

Pulsed drain current: -76A

Maximum avalanche current: -11A

Gate threshold voltage: -2V to -4V

Drain-to-source leakage current: -25�A

Gate-to-source forward leakage: 100nA

Gate-to-source reverse leakage: -100nA

Rise time: 67nS

Fall time: 51nS

Turn-on delay time: 15nS

Turn-off delay time: 51nS

Diode forward voltage: -1.6V

Reverse recovery time: 150ns to 220ns

Reverse recovery charge: 830nC to 1200nC

Maximum power dissipation: 140W

Operating temperature: -55? to 175?
