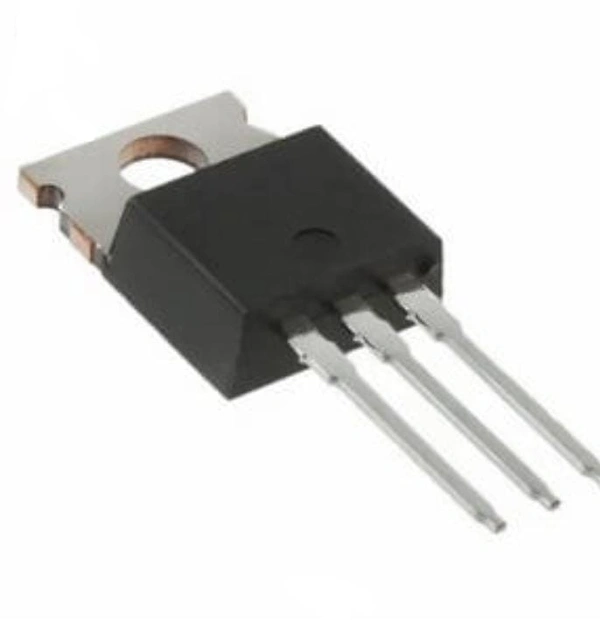

IRF4905 55V 74A P-Channel Power MOSFET

Product Details

• Product: IRF4905
• Transistor type: MOSFET
• Control channel: P-Channel
• No of pins: 3
• Package: TO-220AB
• Mounting type: through hole
• Package contains: 1 x IRF4905 55V 74A P-Channel Power MOSFET

Features

Dynamic dv/dt capability

Advanced process technology

 Fully avalanche rated

Ultra low on-resistance

Fast switching

175? operating temperature

Specification:

Drain-source voltage: -55V

Drain-gate voltage: -55V

Gate-source voltage: �20v

Continuous drain current:

At 25?: -74A

At 100?: -52A

Pulsed drain current: -260A

Maximum avalanche current: -38A

Gate threshold voltage: -2V to -4V

Drain-to-source leakage current: ? 25�A

Gate-to-source forward leakage: 100nA

Gate-to-source reverse leakage: -100nA

Rise time: 99nS

Fall time: 96nS

Turn-on delay time: 18nS

Turn-off delay time: 61nS

Diode forward voltage: -1.36

Reverse recovery time: 89ns to 130ns

Reverse recovery charge: 230nC to 350nC

Maximum power dissipation: 200W

Operating temperature: -55? to 175?
