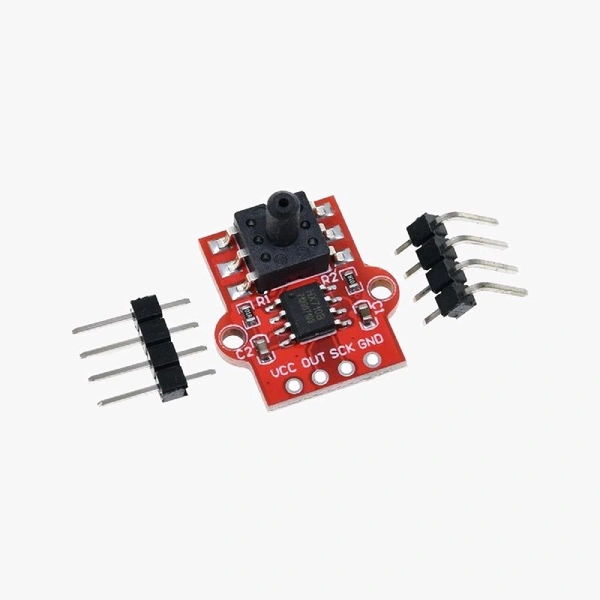

HX710B Air Pressure Sensor Module (0-40KPa) 3.3V-5V Q4 C15

Features

Precise Pressure Measurement: Accurately measures air pressure from 0 to 40 kPa.

Wide Voltage Range: Operates smoothly with 3.3V to 5V power supplies, compatible with most microcontrollers.

Integrated ADC: Built-in 24-bit Analog-to-Digital Converter for stable and accurate digital outputs.

Low Power Design: Optimized for battery-powered and portable applications.

Compact and Lightweight: Small form factor suitable for embedded systems.

Specifications

Pressure Range: 0 to 40 kPa.

Supply Voltage: 3.3V–5V.

Resolution: High resolution with 24-bit ADC.

Output Interface: Digital output (I2C/SPI-compatible depending on configuration).

Operating Temperature: -40°C to +85°C.

Module Dimensions: [Specify dimensions if available].

Applications

Barometric pressure sensing.

Respiratory monitoring in medical devices.

Environmental monitoring stations.

Weather data logging.

Altitude measurement for drones and RC vehicles.

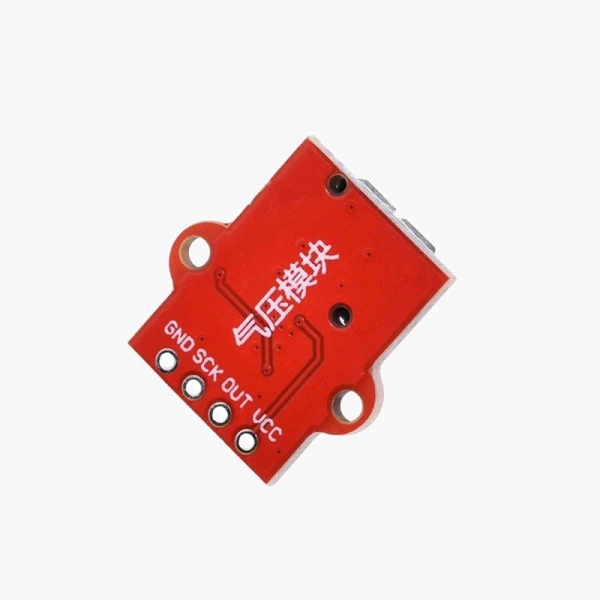

Pinout:

VCC: Power supply (3.3V to 5V)

GND: Ground

OUT: Pressure output (analog voltage)

SCK: Clock line for digital interface

DOUT: Data output for digital interface

Package Includes:

1 x HX710B Air Pressure Sensor Module
