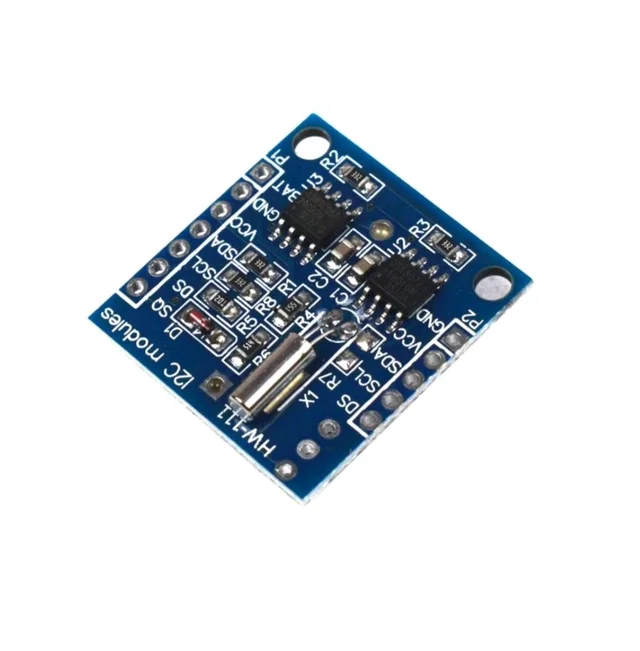

HW-111 Real Time Clock I2C Module With Battery H5 A12

HW-111 Real Time Clock I2C Module With Battery H5 A12

Name: HW-111 Real Time Clock I2C Module With Battery H5 A12
SKU: SKU-6579
Price: 190 INR
Availability: InStock

₹ 190 / Piece

₹ 220

14%

Delivery Options

Get delivery at your doorstep

The HW-111 real-time clock (RTC) IC has an I2C interface and has 8 pins. The HW-111 (DS1307) is a low-power clock/calendar with a battery backup SRAM of 56 bytes. The clock/calendar displays qualified data in seconds, minutes, hours, days, dates, months, and years. Each month's end date is automatically adjusted, especially for months with fewer than 31 days.

Features:

DS1307-based RTC Module.

1Hz output pin.

Consumes less than 500nA in battery backup mode with oscillator running

Underwriters Laboratory (UL) recognized

Real-time clock (RTC) counts seconds, minutes, hours, dates of the month, month, day of the week, and year with leap-year compensation valid up to 2100

56-byte non-volatile RAM for data storage

56 Bytes of Non-volatile memory available to the user.

The DS1307 is accessed via the I2C protocol.

The module comes fully assembled and pre-programmed with the current time.

Specification

Model (DS1307) HW-111

Type I2C RTC Module

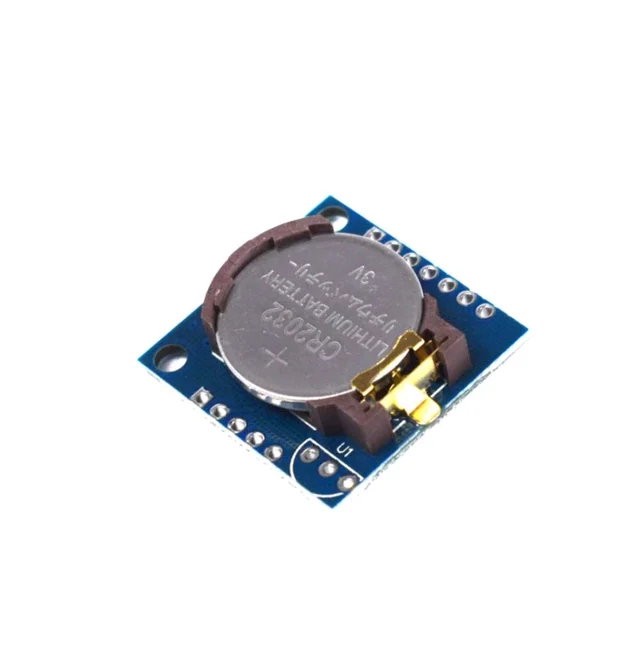

Battery CR2032 Lithium Battery

Battery Included Yes

Total No. of Pins 12

Size (L*W*D) (mm) 28*27*6.4 (mm)
