HTC LCR-4070 Digital LCR Meter 3½ Digit Display Q15 C1

Features of HTC LCR-4070 Digital LCR Meter 3½ Digit Display:

3½ digit LCD display with 2000 count resolution

Full protection circuitry with capacitance self-discharge function

Auto power-off function to save battery

Low battery indication when voltage < 7.5V

Capacitance discharge protection for safe measurements

Sampling rate of 3 times per second

Large LCD screen for clear and easy readings

Measures inductance, capacitance, resistance, and frequency

Specifications of HTC LCR-4070 Digital LCR Meter 3½ Digit Display:

Display: 3½ digit LCD (2000 counts)

Capacitance Ranges: 200pF, 2nF, 20nF, 200nF, 2µF, 20µF, 200µF, 2000µF

Resistance Ranges: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ

Inductance Ranges: 200μH, 2mH, 20mH, 200mH

Frequency Ranges: 20kHz, 200kHz (±1.0% + 20 digits)

Accuracy: ±(2.0% + 5 digits) for inductance

Sampling Rate: 3 times/second

Power Supply: 9V Battery (6F22)

Dimensions: 185 × 93 × 35mm

Package Includes:

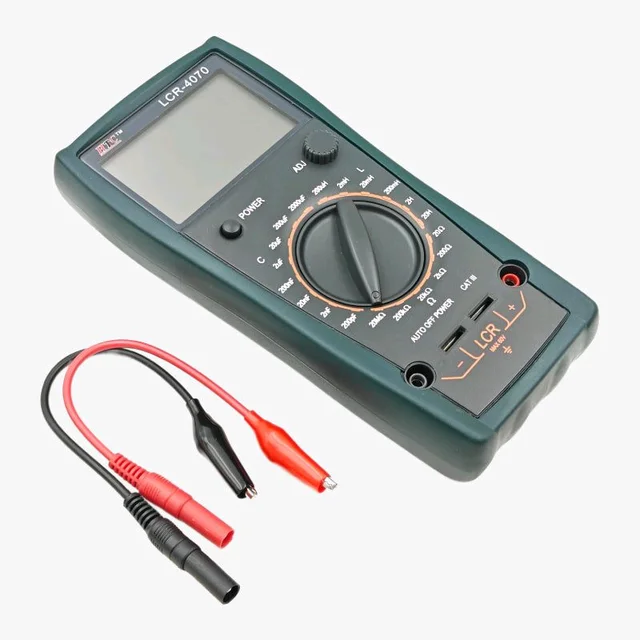

1 × HTC LCR-4070 Digital LCR Meter

1 × Set of Test Leads

1 × User Manual

1 × 9V Battery
