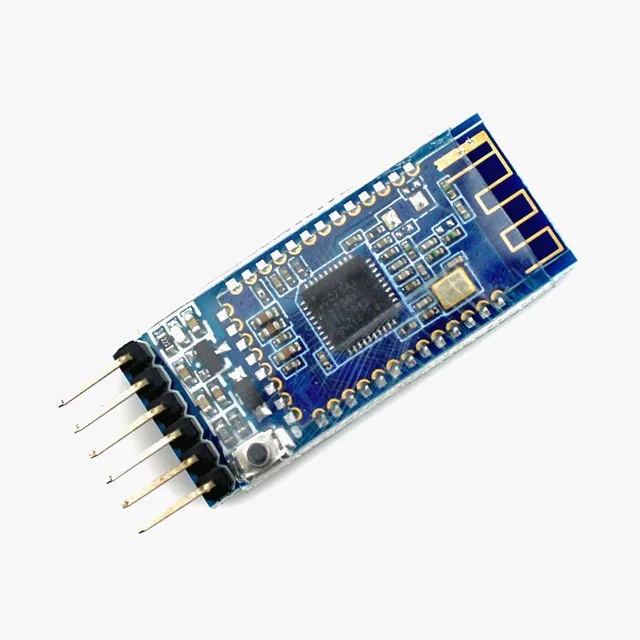

HM-10 Bluetooth Module - AT-09 Bluetooth 4.0 UART Transceiver Module CC2541 Q5 C2

The module has a built-in CPU that supports IO expansion, 14-bit two channel ADC, 120Hz four channel PWM etc. It has a range of 60 meters and consumes very low power in standby mode. The module can act both as a Master and as a Slave.

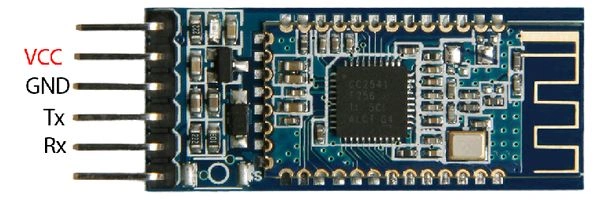

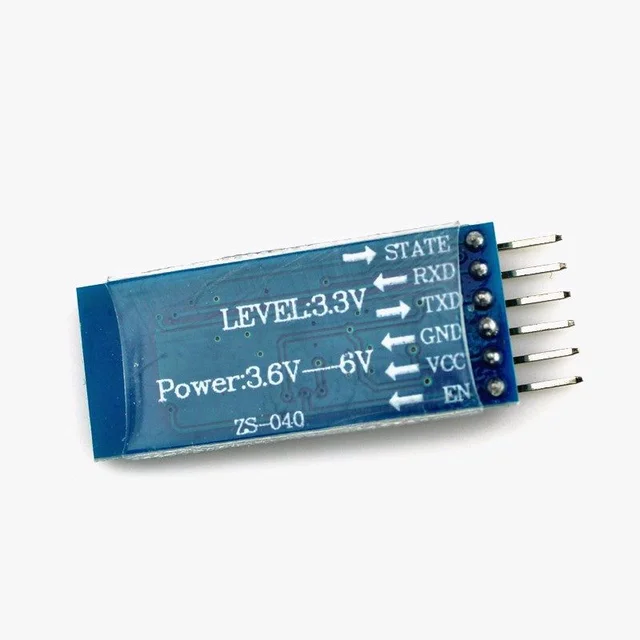

HM-10 Bluetooth Module pinout:

HM10 Bluetooth Module Pinout

HM-10 Bluetooth Module Pin



HM-10 Bluetooth Module features, Specification:

Features:

Bluetooth Protocol Specification: Bluetooth Specification V4.0 BLE

Supported USB Protocol: USB V2.0

Operating Frequency: 2.4GHz ISM band

Modulation Mode: GFSK (Gaussian Frequency Shift Keying)

Transmitting Power: ≤4dBm

Sensitivity: ≤-84dBm at 0.1% BER

It’s easy to use and completely encapsulated.

You can set it as slave or master.

You can use AT command set the baud rate

Coverage up to 60 meters.

Built-in PCB antenna.

UART design.

Support bridge direct-driven mode simultaneously (no need for extra CPU).

20ms connection interval (default), quick to connect; Support AT instruction, to modify the baud rate of the serial port, gain MAC address and modify module name.

Support AT instruction, to adjust the Bluetooth connection interval and control the forwarding rate (dynamic power consumption adjustment).

Support APP; IO expansion.

2 channel ADC input (14 bit).

4 channel PWM (120Hz) output.

The RSSI successive acquisition, auto read, and notification to APP (used in anti-lost alarm).

Power indicator/alert.

Support anti-hijack password setup, modification, and restoration.

Ultra-low power consumption standby mode

Specification:

Input Supply voltage (V) : 5

USB Protocol : USB V2.0

Operating Frequency : 2.4GHz ISM band

Modulation Mode : GFSK

Transmitting Power (dBm) : ≤4

Coverage Range (m) : 60

Sensitivity : ≤-84dBm at 0.1% BER

Length (mm) : 47

Width (mm) : 17

Height (mm) : 8

Weight (gm) : 4

HM-10 Bluetooth Module Applications:

Bluetooth Communication

BLE Devices

Indoor Navigation

Robotics

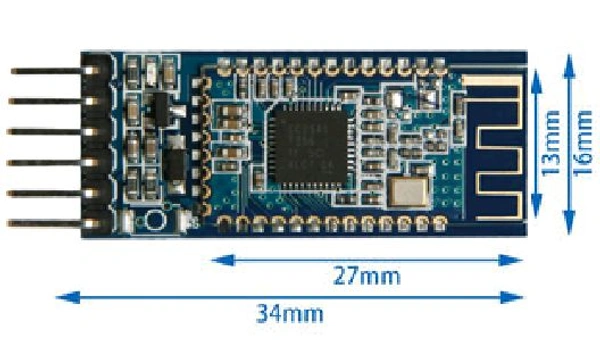

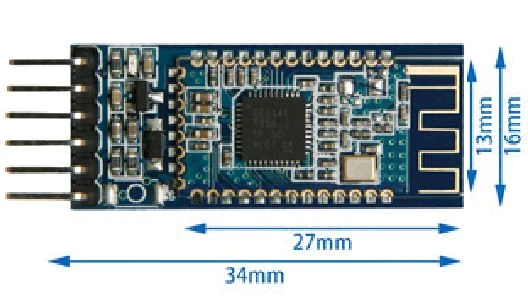

HM-10 Bluetooth Module Dimension and footprint:

HM-10 Bluetooth Module Dimension and Footprint

Additional Resources:

HM-10 Bluetooth Module Datasheet



Package Contains

1x HM-10 Bluetooth Module
