HF550 HJ550 6-Axis DJI Hexacopter Frame Airframe kit, Integrated PCB Wiring for DJI, KK, MK, MWC C7 B5

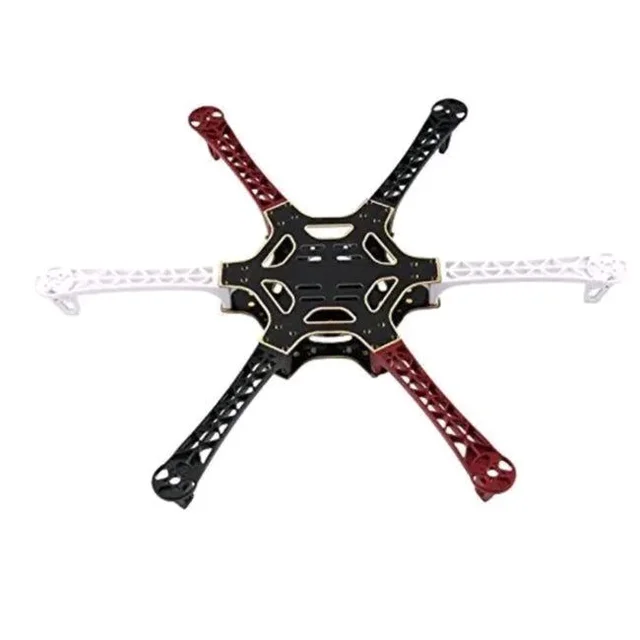

The HF550 HJ550 6-Axis DJI Hexacopter Frame Airframe kit is an excellent strong lightweight Hexacopter frame with carbon fiber landing gear and a bonus built-in printed circuit board for neat and easy wiring. This Hexacopter Frame comes with an integrated PCB for neat and easy wiring. The added lift capacity of a hex configuration makes this frame for carrying larger payloads such as camera systems and other electronic components. Hexacopter Frame makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics.

Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter, on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter.

This airframe kit is best compatible with a 6 Axis HF550 and HJ550 hexacopter drones. This features an in-built PCB connection for easy soldering and provides a strong and sturdy build.



Browse our extensive Drone Parts collection!

Also Explore the wide range of Drone Frames at best prices.

Features:

Frame Weight: 478 grams

Diagonal Length: 550 mm (motor to motor)

Takeoff Weight: 1200g - 2400g

Propeller Size: Recommended propellers are 10 x 4.5 inches or 8 x 4.5 inches

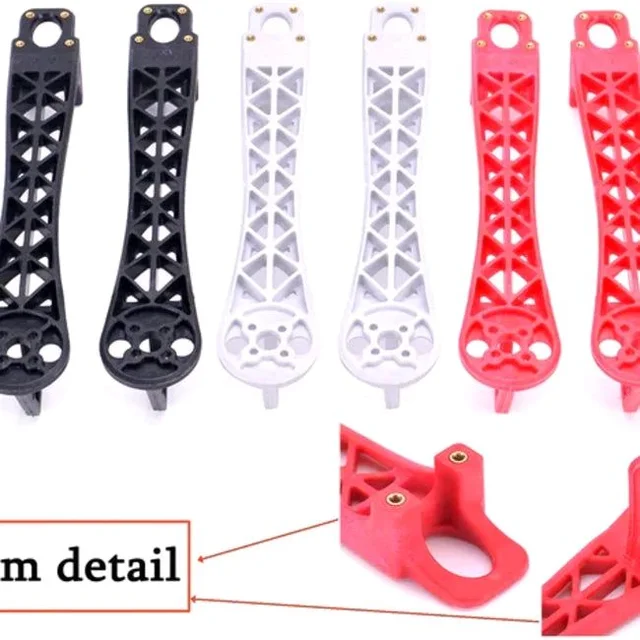

Material: Frame arms made of PA66+30GF ultra-strength material for better crashworthiness

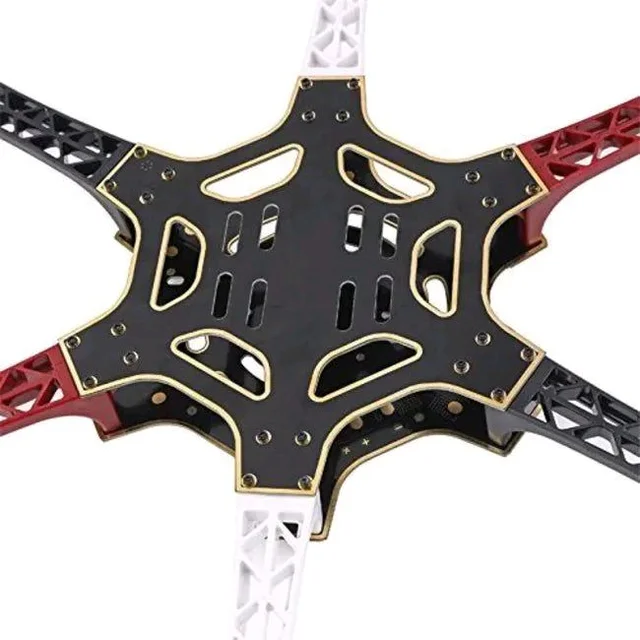

Integrated PCB Wiring: High-strength compound PCB frame board for safer and easier wiring of ESCs and batteries

Assembly Space: Optimized frame design provides abundant space for autopilot systems

Color: Frame arms are red (2) and white (4), adding a colorful touch to your hexacopter

Applications:

Quadcopter

Drones

UAV

Package Includes:

1 x Frame Kit for HF550 and HJ550 Hexacopter

Specifications:

Model HF550 and HJ550 Hexacopter Frame Kit

Number of Axis 6

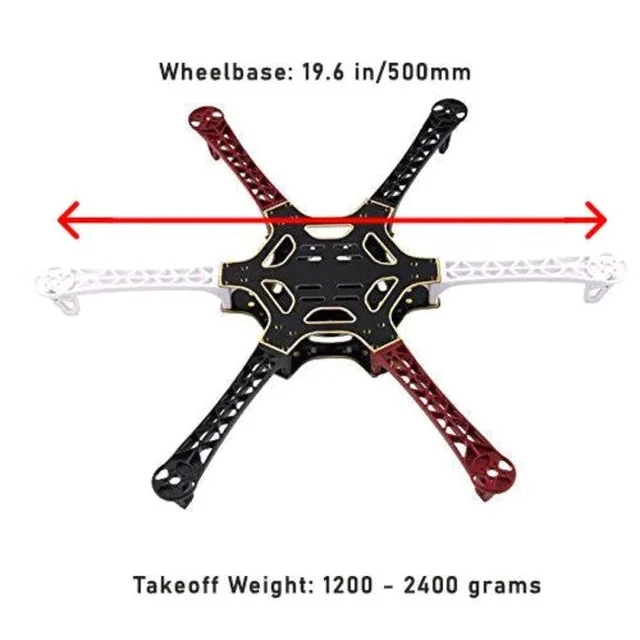

Wheelbase Symmetrical 500mm

Propeller 10 x 4.7in. 8 x 4.5in

Takeoff weight 1200 - 2400 grams
