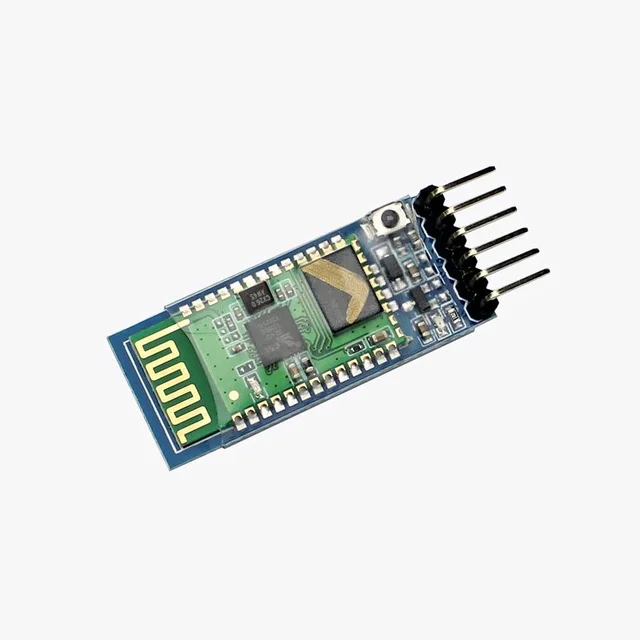

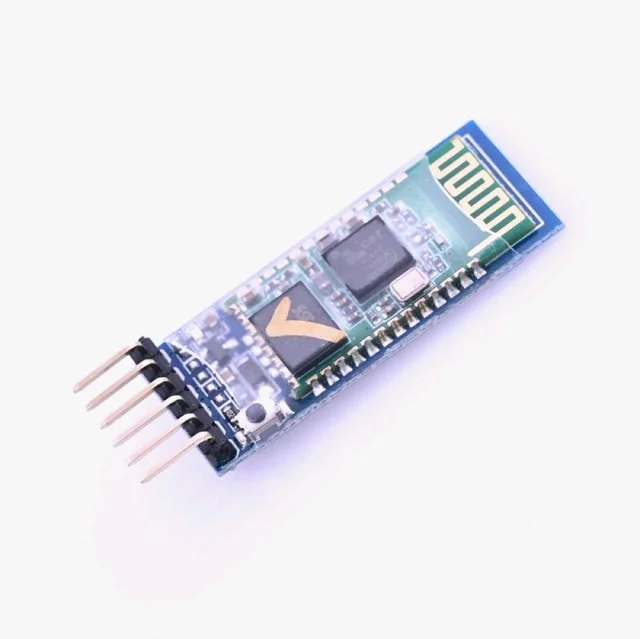

HC-05 Bluetooth Module Q5 C2

Name: HC-05 Bluetooth Module Q5 C2
SKU: SKU-6332
Price: 280 INR
Availability: InStock

₹ 280

₹ 350

20%

Delivery Options

Get delivery at your doorstep

The IoT enabled projects require two way communication between the microcontroller and various sensors. There are various methods you can do that, Wired Communication, WiFi, Bluetooth are some among them. The HC-05 Bluetooth Module adds wireless communication to your project to communicate via Bluetooth to any Bluetooth enabled Laptop or Mobile Device. The module communicates at 9600 baud rate via USART protocol. It can be used in applications like communication between two microcontrollers, data logging, wireless robots, wireless sensors data acquisition and home automation.

Specifications

Profiles: Bluetooth serial port Profile

Dimension: 26.9mm x 13mm x 2.2 mm

Bluetooth protocol: Bluetooth Specification v2.0+EDR

Frequency: 2.4GHz ISM band, Range

Modulation: GFSK (Gaussian Frequency Shift Keying)

Sensitivity: -84dBm at 0.1% BER

Speed: Asynchronous: 2.1Mbpsmax / 160 kbps, Synchronous: 1Mbps/1Mbps

Emission power: 4dBm, Class 2

Power supply: +3.3V, 50mA

Security: Authentication and encryption

Working temperature: -20°C to +75°C

Product Description

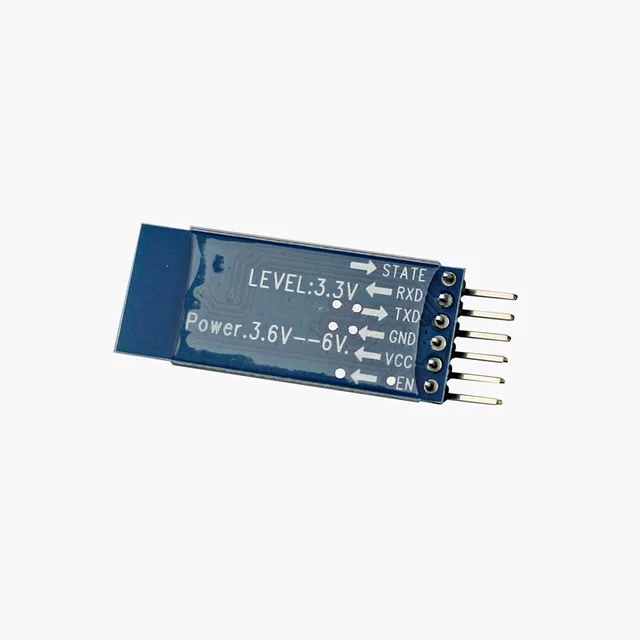

HC05 Bluetooth Module Pinout

The module has two operating modes Data mode and Command Mode. To connect it with your Arduino or Raspberry Pi connect the TX and RX pins to the controller and power the device with VCC pin connected to 5V pin. While in data mode it can send or receive the data from other Bluetooth devices and in command mode it will change default device settings.

Applications

Industrial Applications

GPS receiver

Computer and portable Devices

Embedded Projects

Package Contents

1×HC-05 Bluetooth Module
