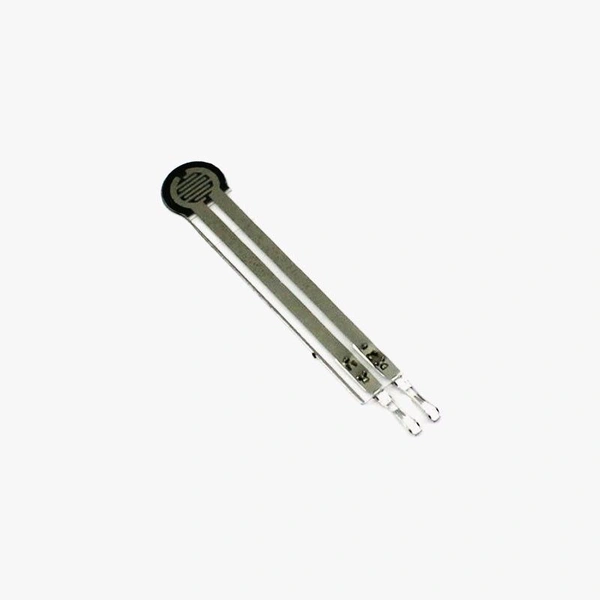

Force Sensor 5.08mm - Circular Q4 C15

Force sensors, are devices that are designed to translate applied mechanical forces, such as tensile and compressive forces, into output signals whose value can be used to reflect the magnitude of the force. The signals may be sent to indicators, controllers, or computers to inform operators or serve as inputs to provide control over machinery and processes. Although strictly speaking force sensors and force transducers differ from each other, the two terms are most commonly used interchangeably.

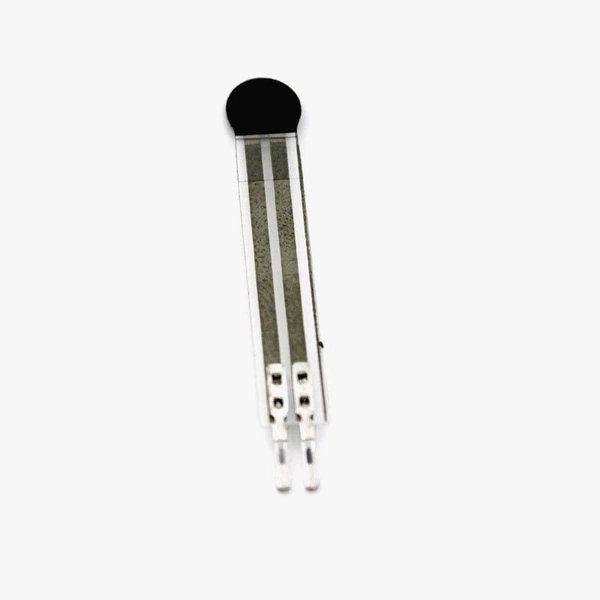

Two pins extend from the bottom of the sensor with 0.1 pitch making it bread friendly.

These sensors are simple to set up and great for sensing pressure, but they arent incredibly accurate. Use them to sense if its being squeezed, but you may not want to use it as a scale.

Circular Force Sensor Features:

Easily customizable to a wide range of sizes

Cost-effective

Ultra-thin; 0.45 mm

Robust; up to 10 million actuations

Simple and easy to Integrate.



Circular Force Sensor Specifications :

Actuation Force

0.1 Newtons

Force Sensitivity Range

0.1 10.02 Newtons

Non-Actuated Resistance

10M W

Device Rise Time

<3 microseconds

Operating Temperature (C)

-30 to 60

Clock Speed

16 MHz

Flash Memory

32 KB

Overall length

4.5cm(45mm)

Overall width

0.7cm(7mm)

Sensing area

0.4cm(4mm)



Package Includes:

1 x Force Sensor 5.08mm - Circular
