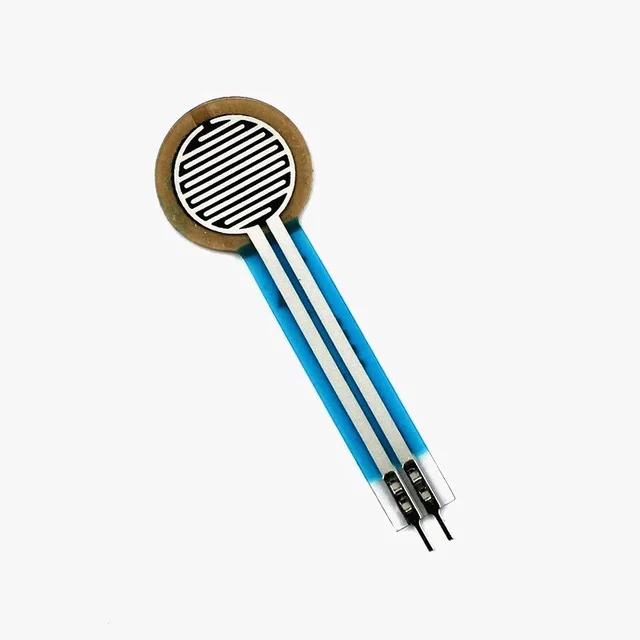

Force Sensor 0.5" 14.7mm - Circular Q4 C15

The harder the force, the lower the resistance. When no pressure is been apply to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

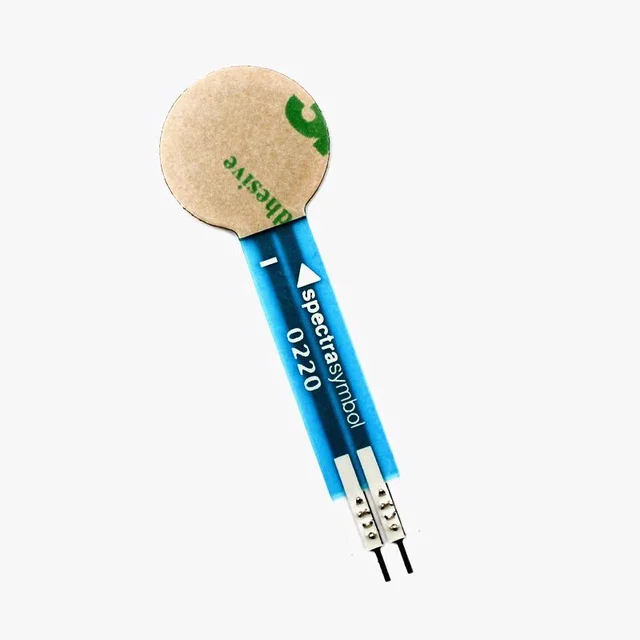

Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR. Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied.

These sensors are simple to set up and great for sensing pressure, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale.

This sensor can easily interface with Microcontrollers, Arduino Boards, Raspberry Pi, etc. using an Analog to Digital Converter (ADC). so to get the best deal on this pressure sensor at affordable price buy now.



Applications:

Testing and Measurement Equipment.

Embedded Electronics.

OEM Development Kit.

Consumer Electronics.

Multimeter.

Features:

Easily customizable to a wide range of sizes.

Cost-effective.

Ultra-thin: 0.45 mm.

Robust: up to 10 million actuations.

Simple and easy to Integrate.

Package Includes:

1 x Force Sensor 0.5" 14.7mm - Circular
