FlySky FS-iA10B Radio Receiver- 2.4GHz 10 Channel C7 B3

Building on the previous FlySky iA6B receiver, FlySky is now providing a 10-channel version of the receiver called the FlySky FS-IA10B Radio Receiver. Like the FS-iA6B, the iA10B is capable of iBUS, SBUS, PPM, and PWM for enhanced control.

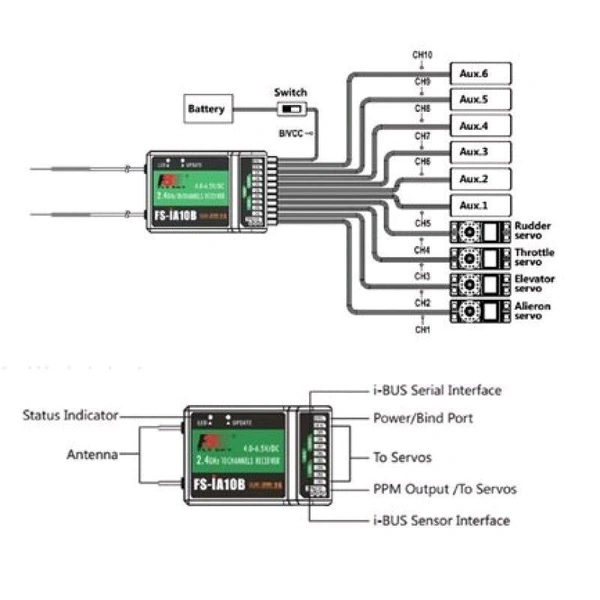

The advantage of PPM / SBUS over traditional PWM channels is that you only need to use one signal wire, rather than one for each PWM channel hence for PPM-compatible flight controllers such as the Naze32, the wiring is greatly simplified. Furthermore, with the optional telemetry sensors, you can expand the receiver's compatibility to monitor flight battery voltage and even things like motor RPM.

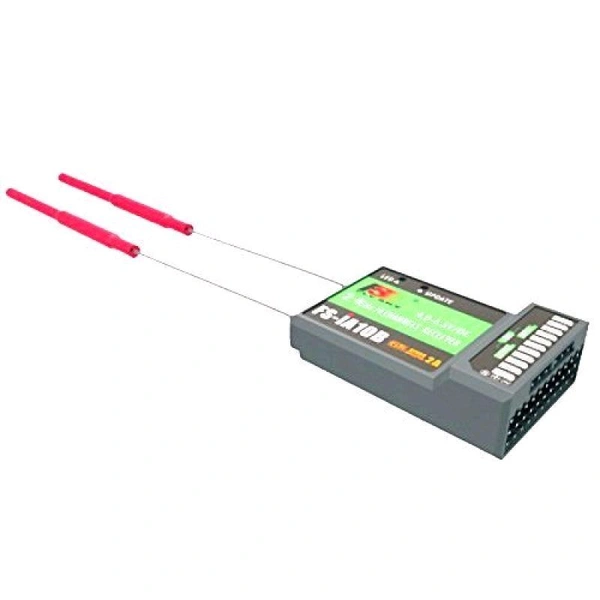

This full 10 channel receiver works for most models and is considered a full range so it can handle larger models as well as smaller ones. Dual antennas give the FS-iA10B for unparalleled reception (reported at well over 1km) and interference rejection capability. For best results, makes sure the antennas are set at a 90-degree angle from each other.

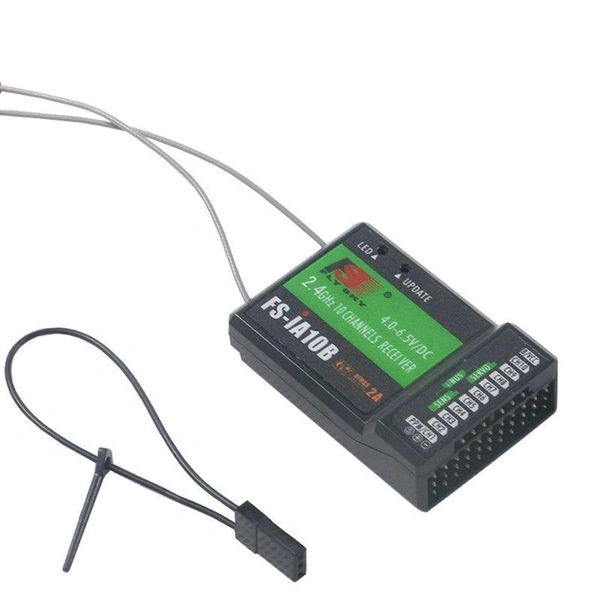

The FS-iA10B is slightly larger than the FS-iA6B (see product pic), but it's still compact and it features end-on connectors to enable a neat installation in tight spaces.

How to bind the RX (receiver) to the TX (transmitter):

Plug bind plug into BAT, turn on plane/heli, the LED light should flash (make sure power is connected to RX via ESC)

Hold down bind button on transmitter module while turning on the TX

The light should go steady now

Let go of bind button, turn off plane/heli, remove bind plug, turn off TX

Turn on TX and then turn on plane/heli

Compatible Radios:

Flysky i4

Flysky / Turnigy i6

Flysky / Turnigy i10

Flysky FS-i10

FS-GT2E

FS-GT2G

Note: If you want to use PPM, remember to enable the setting on your transmitter.

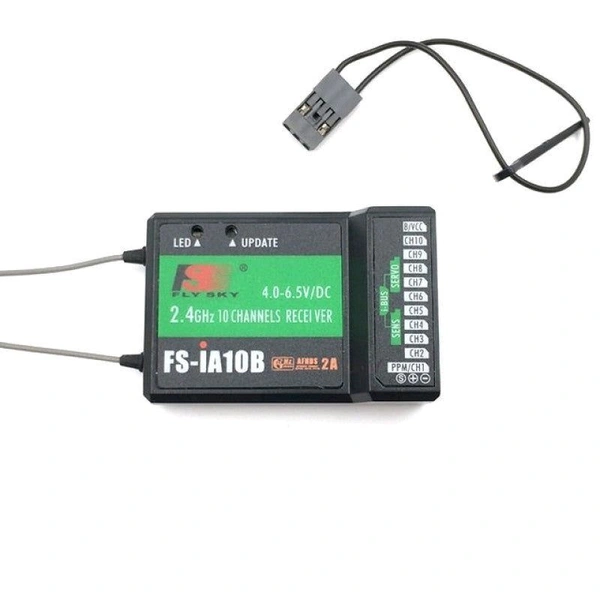

Package Includes:

1 x FlySky FS-IA10B Radio Receiver

1 x Bind Plug

Specifications:

Model

FS-IA10B

No. of Channels

10

No. of Band

140

Encoding

GFSK.

Modulation Type

GFSK

RF Range

2.40552.475 GHz.

Rx Sensitivity (dBm)

-105

Signal Output

IBUS, PPM

Operating Voltage (VDC)

4.0 ~ 6.5

Current Consumption (mA)

40

Control Distance

400m+

i-Bus Interface

Yes

Data Acquisition Interface

Yes

Antenna Gain

2dB

Antenna Length (mm)

110

Color

Black

Net weight (gm)

15

Dimensions (mm) LxWxH

47 x 34 x 15
