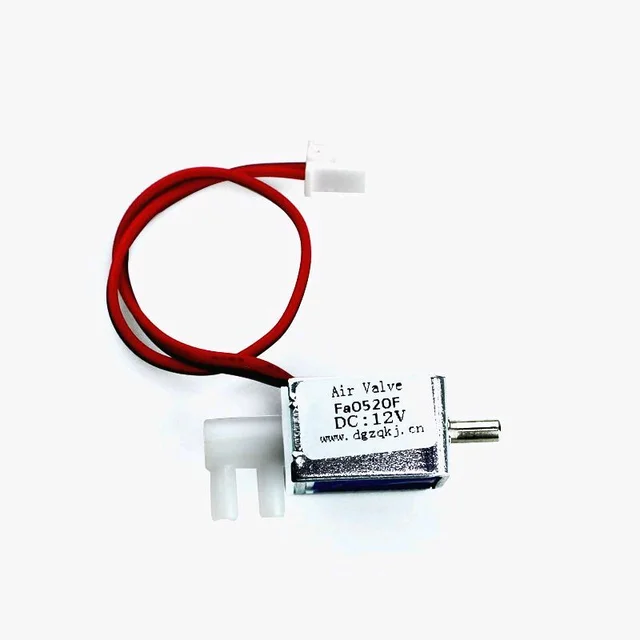

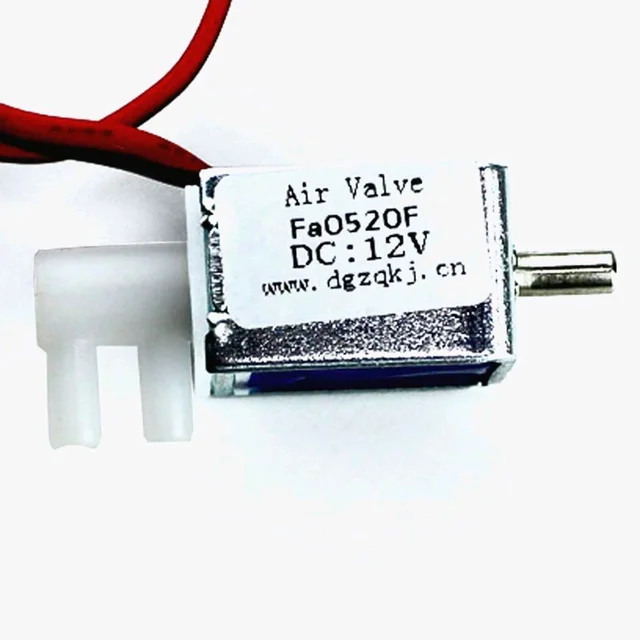

FA0520F 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Air / Gas Q11 C7

This is a tiny 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Gas Air/Pump Gas Release Exhaust Discouraged Solenoid Exhaust Valve. Control gas flow in and out with this small Gas valve which operates on 12V dc.

How it Works :

This valve act as closed (blocked flow) when not powered.

When you apply a 5V power supply to the input, the valve gets open and the flow-through valve get started.

Removing the supply voltage again blocks the flow.

This is a two-way valve which means it can flow in both directions.

Working Modes :

When powered on, 1 and 2 are connected, 3 and 1,2 are not connected.

When power is off, 1 and 3 are connected, 2 and 1, 3 are not connected.

Specifications:

Power

Pneumatic

Pressure

Vacuum

Operating Temperature (°C)

-10 to 60

Type

Air Valve

Inner Diameter (ID) (mm)

1.6

Outer Diameter (OD)(mm)

3

Length (mm)

35

Width (mm)

15

Height (mm)

15

Wire Length(mm)

150

Package Includes:

1 x FA0520F 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Air / Gas
