F450 Quadcopter Frame Kit with A2212 KV1000 Brushless Motor and 4 30A ESC and 2 Pair 1045 Propeller C7 B1

Assembling this Lightweight f450 drone frame kit is easy with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required. It utilizes one size of bolt for the entire build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.

The Durable F450 frame for multirotor drones consist of the following parts:

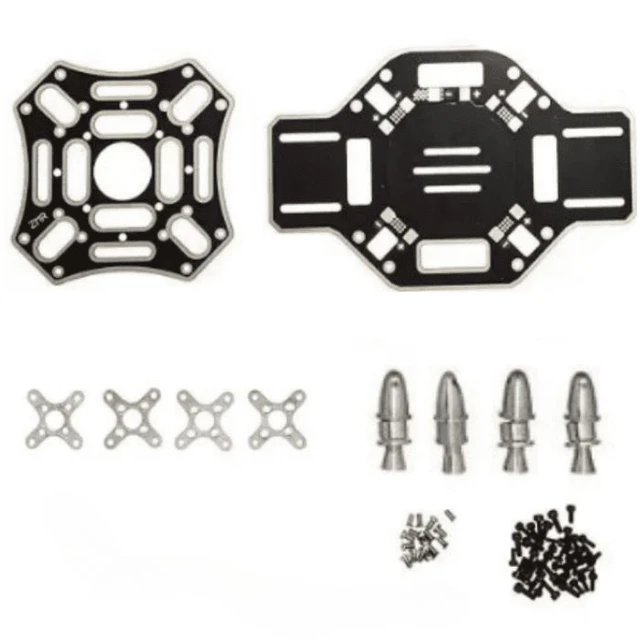

F450 Quadcopter Frame

The F450 Quadcopter Frame is a 450mm quad frame built from quality materials. The main frame is glass fiber while the arms are constructed from ultra-durable polyamide nylon. F450 drone frame also comes with stronger molded arms, so no more arm breakage at the motor mounts on a hard landing.

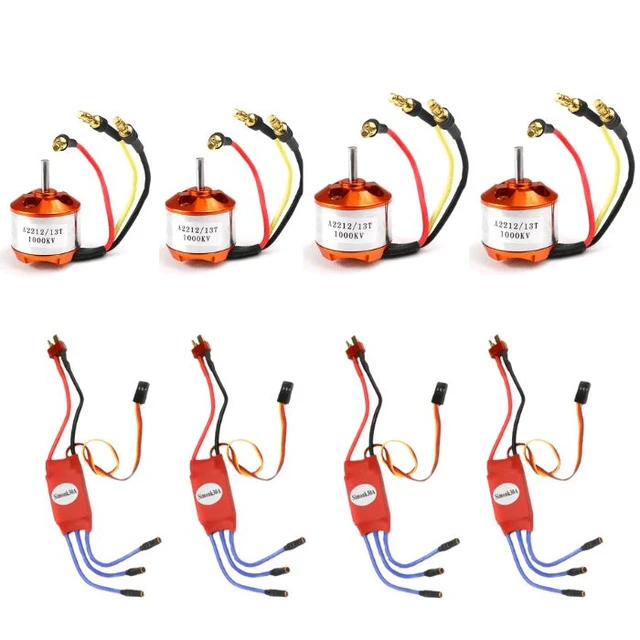

A2212 1000Kv motor

The A2212 1000Kv motor is a BLDC brushless outrunner motor specifically made for quadcopters and multirotors. It provides high performance and brilliant efficiency.

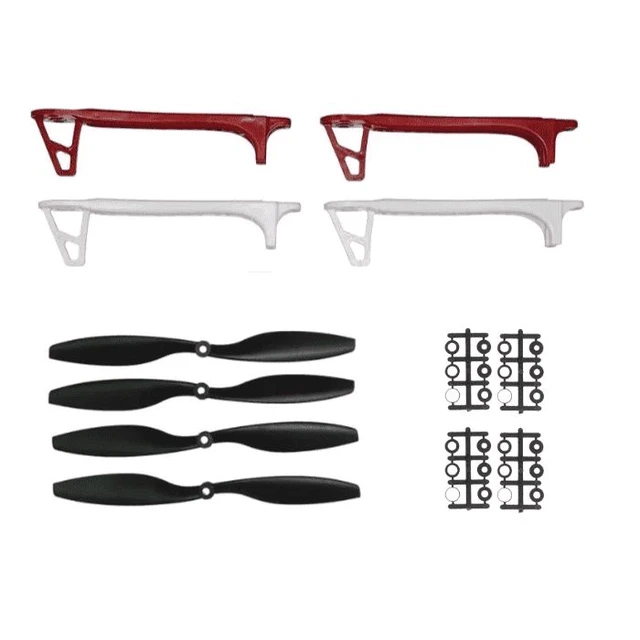

1045 propellor

A set of 2 x 1045 Propellers. The set includes one clockwise rotating and one counter-clockwise rotating propeller with 2 x propeller shaft adapters. The adapters allow the propeller to be used with motors of different shaft diameters.

Simonk 30Amp ESC brushless motor

The Simonk 30A ESC is an Electronic Speed Controller (ESC) which is used to drive brushless DC motors and is capable of supplying current up to 30A. The 30A Simonk controller is made for quadcopters and multicopters to provide faster and better motor speed control.



Check out the best F450 Quadcopter Frame kit

Upgrade Your RC with FlySky FS-CT6B Transmitter and Receiver

How do you install the ESCs and the brushless motors into the F450 frame?

Installing the ESCs and the brushless motors on the quadcopter frame kit is a simple operation.

Best DIY drone making kit for learning STEM & Robotics.

Firstly, mount the motors on the arms of the f450 quadcopter drone frame kit by screwing the motors onto the motor mounting plates.

Mount the motors such that the wires are in the direction of the centre of the frame.

Plug the ESCs to the brushless motors and then zip tie the ESCs and the wires to the arms of the quadcopter frame firmly.

The 4 ESC's need to be soldered to the bottom PCB (bigger in size). The red wires of the ESCs must be soldered to the positive terminal while the black wires must be soldered to the negative terminal.

To solder the wire first you need to tin the point on the board by applying some solder.

Ensure the solder joint is clean and strong.



Also check Smart 100 Carbon Fiber FPV RC Racing Quadcopter Frame Spare Parts Accessories Kit.

read our blog explaining the what do you need to build a drone.

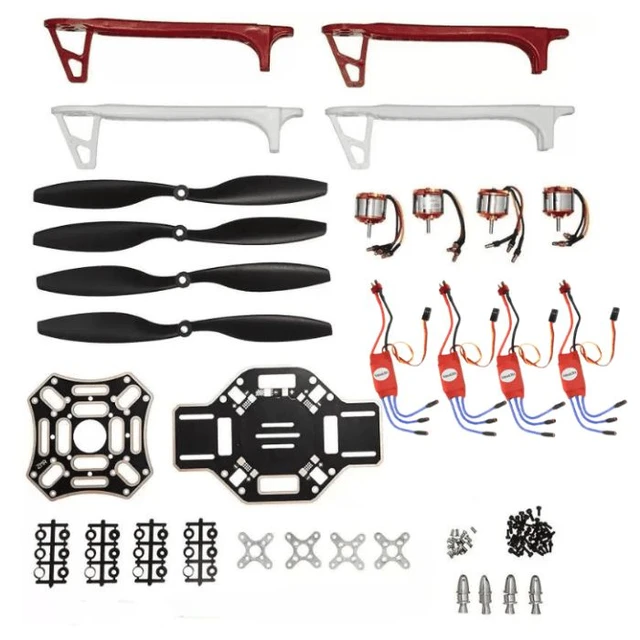

Package Includes:

4 x 1000 KV motor

4 x 30Amp ESC brushless motor

2 pairs x 1045 propellor

1 x F450 Quadcopter Frame

Specifications:

Motor KV (RPM/V) of BLDC motor

1000

Maximum Power (W) of BLDC motor

 150

Current Rating of Simonk 30A ESC

30A

BEC of Simonk 30A ESC

5V 2A

Material of Quadcopter Frame

Glass fiber

Package Dimensions

15 x 9 x 8cms

Package weighs

750 grams
