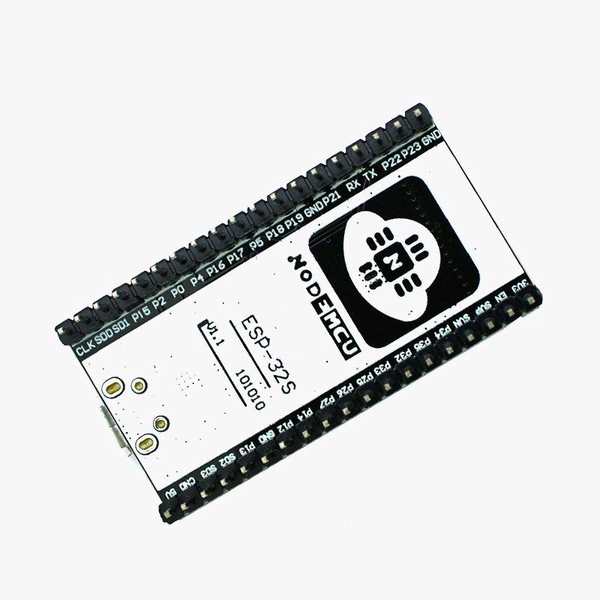

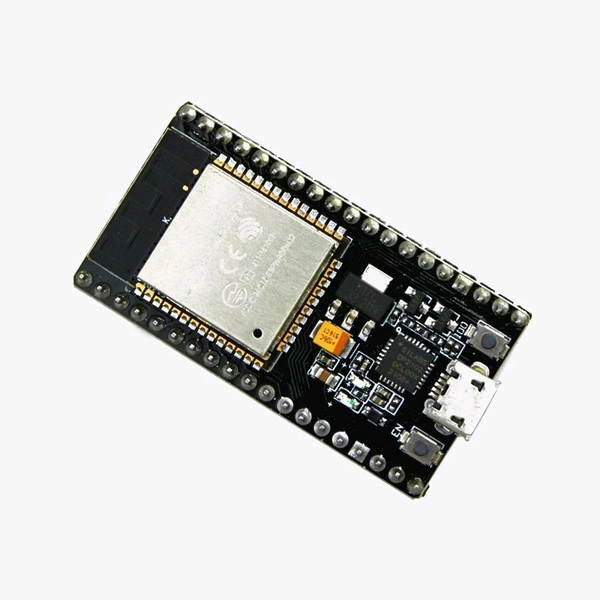

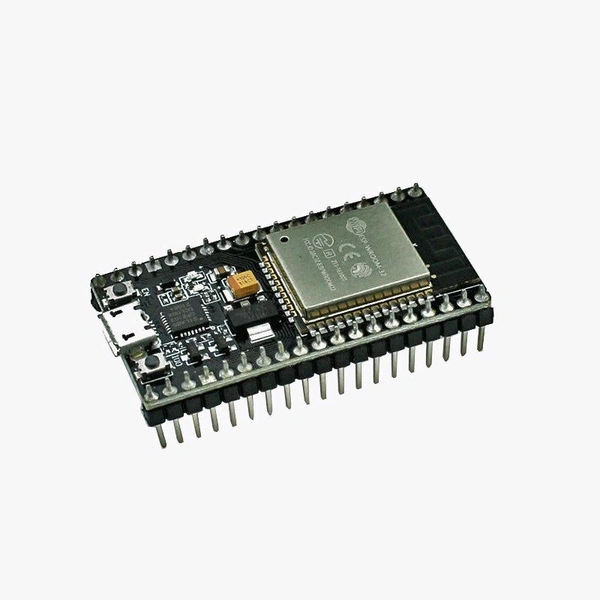

ESP32S 38Pin Development Board (WIFI+BLUETOOTH) Q2 C3

It has a dual mode 2.4 GHz Wi-Fi with 40nm low power TSMC technology making it safe reliable and scalable. The board also has a CP2102 USB-UART bridge making it easier to use serial communication for debugging. The Board can be used with Arduino IDE and also with Lua Programming Environment.



Product Description of ESP32S Development Board

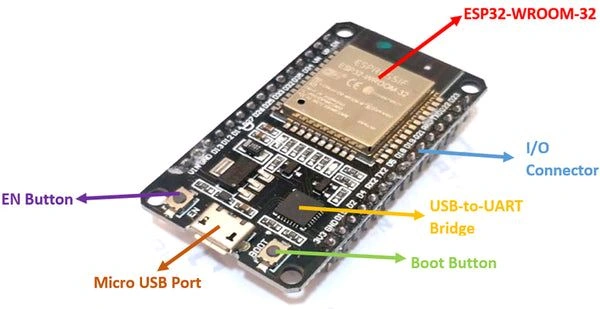

ESP32-Development Board

The ESP32 is a successor of the ESP 8266 board. It is has a dual core processor and it combines both Wi-Fi and Bluetooth capabilities. The board has a USB-to UART interface so that it can be easily programmed with popular Development environments like Arduino IDE. It can be powered through the Micro USB port, the 3.3V pin or the Vin pin.

Specifications of the ESP32S Development Board

Main processor: Tensilica Xtensa 32-bit LX6 microprocessor

Has Ultra-low power Coprocessor

Clock frequency: up to 240 MHz

Wireless connectivity: Wi-Fi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s) ; Bluetooth: v4.2 BR/EDR and Bluetooth Low Energy (BLE)

Security: IEEE 802.11 standard security features all supported, Secure boot , Flash encryption 1024-bit OTP, up to 768-bit for customers, and Cryptographic hardware acceleration.

Designed with TSMC Ultra-low power 40nm technology

Operating Voltage : 3.3V

DC Current on I/O Pins : 40 mA

DC Current on 3.3V Pins : 50 mA

Communication :SPI, I2C, I2S, CAN, UART

Has on-board enable and reset pins

Additional Resources

ESP32 Development Board datasheet

Getting Started with ESP32

Package Includes

1 x ESP32S Development Board (WIFI+BLUETOOTH)
