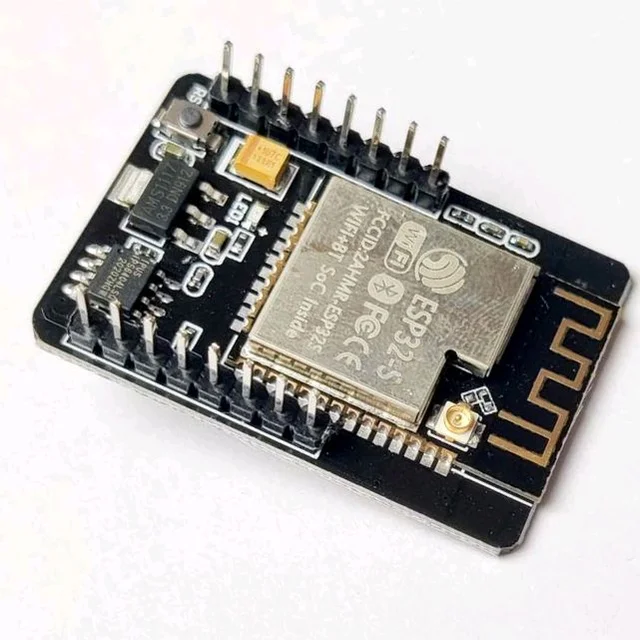

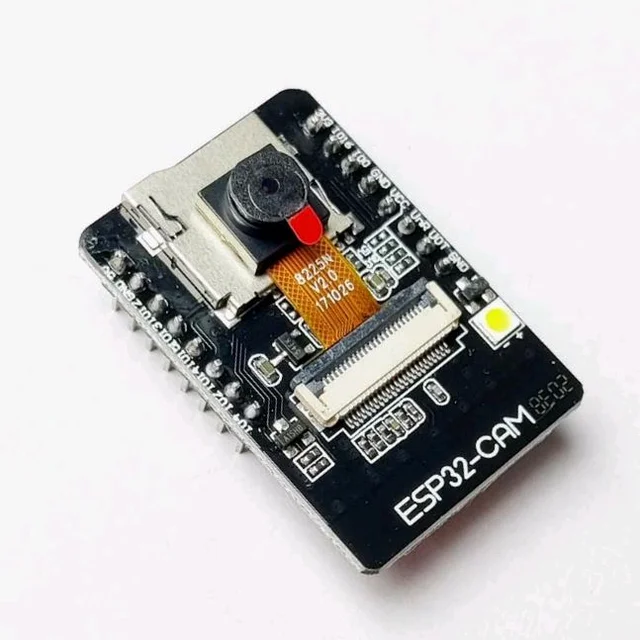

ESP32 Camera Development Board WiFi+Bluetooth Module with OV2640 Q7 C8

For the camera spec, it is a very small sized camera yet powerful that can be used with minimum system supports. It is available in a ribbon cable formation. The camera is powered by an UXGA resolution of 1600 x 1200 resolution with 2.0 Megapixel resolution. It is a good choice for most of the camera based IoT applications.

Disclaimer: This ESP32 Camera Development Board will come with either the OV2640 or the RHYX-M21-45 camera module, depending on availability. Both variants are compatible with the board and offer similar performance.

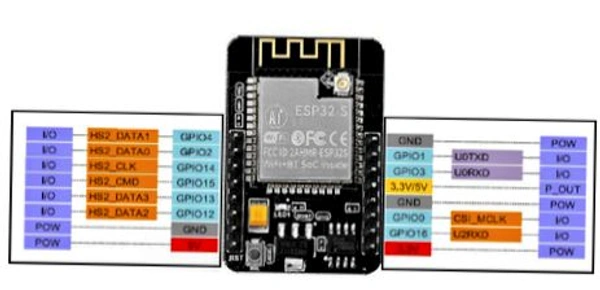

ESP32 Board Camera Module pinout:

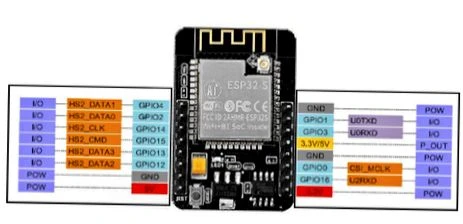

ESP32 Camera DEVELOPMENT BOARD Pinout

Package Contains

1x ESP32 Board & OV2640/RHYX-M21-45 Camera Module



ESP32 Camera Development Board features & Specifications:

ESP32-CAM Board and OV2640 or RHYX-M21-45 (2MP) Camera module in two separate parts

9 fully customizable I/O ports

32Mbit Flash

520KB SRAM +4M PSRAM

802.11 b/g/n/e/i WiFi support

4.2v Bluetooth support

IPEX and PCB Antenna available

3.6V ~ 5V supply voltage

2.0 Megapixel Color CMOS UXGA technology

8-bit compressed data output with RGB565/555 support

UXGA/SXGA at 15 fps

SVGA at 30 fps

CIF at 60 fps

1600 x 1200 resolution of UXGA

3590um x 2684um image area.

ESP32 WiFi and Bluetooth Module Applications:

Cellular or Camera Phone

IoT based surveillance camera

Web Cam

Image processing

Digital still camera

PC multimedia

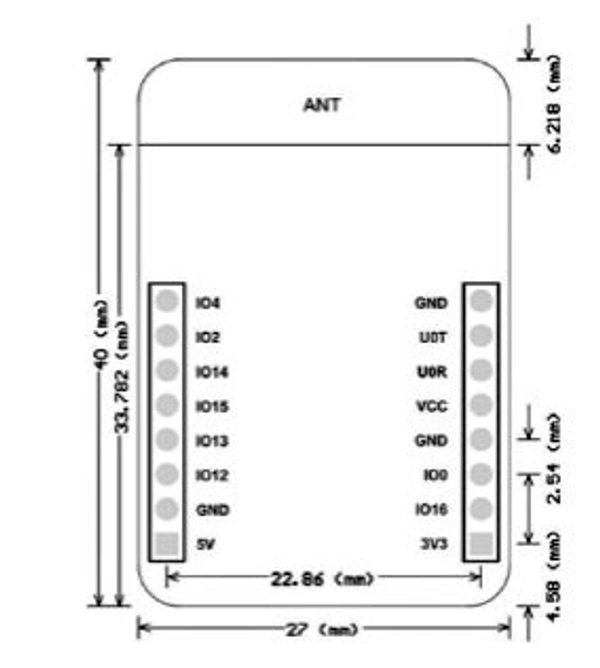

ESP32 Board & OV2640 Camera Module Dimension and footprint:

ESP32 Camera DEVELOPMENT BOARD WIFI+BLUETOOTH WITH OV2640 CAMERA



Example Projects on ESP32 Board & Camera Module:

ESP32 - video streaming and face recognition

Additional Resources:

ESP32 Board & OV2640 Camera Module Datasheet
