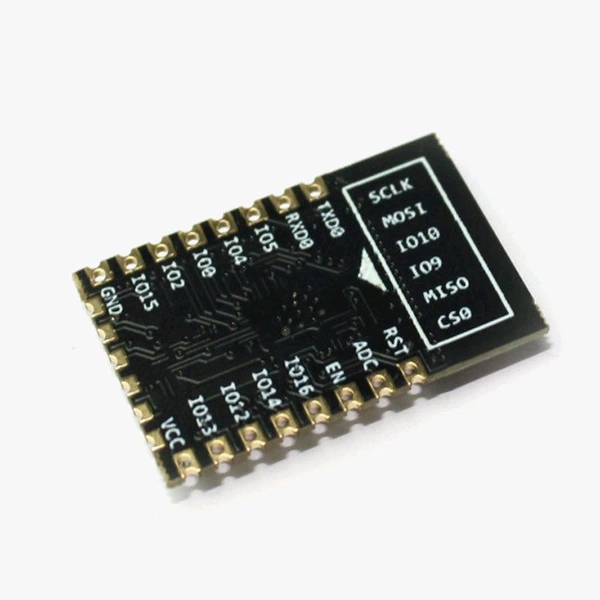

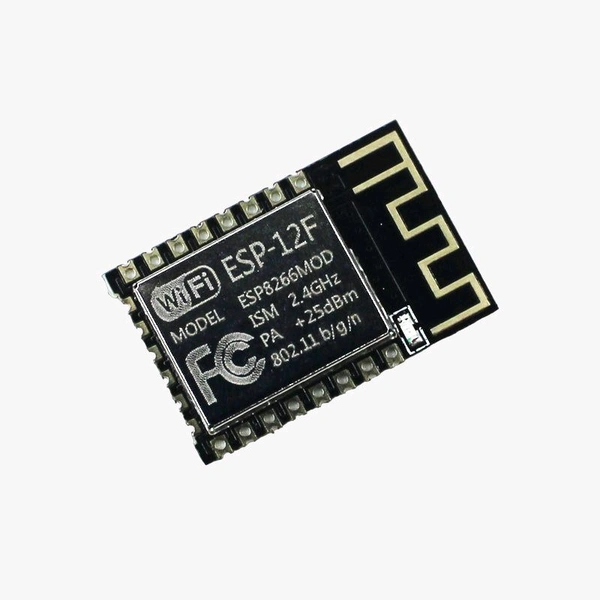

ESP-12F ESP8266 Wireless WiFi Module Q2 C3

Features of ESP 12F:

Integrated low power 32-bit MCU

Integrated 10-bit ADC

Integrated TCP/IP protocol stack

Integrated PLL, regulators, and power management units

Deep sleep power <10uA, Power down leakage current < 5uA

Wake up and transmit packets in < 2ms

Standby power consumption of < 1.0mW (DTIM3) 5

Wi-Fi 2.4 GHz, support WPA/WPA2

Support STA/AP/STA+AP operation modes

Support Smart Link Function for both Android and iOS devices

SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO

STBC, 1x1 MIMO, 2x1 MIMO

A-MPDU & A-MSDU aggregation and 0.4s guard interval

+20dBm output power in 802.11b mode

Operating temperature range -40C ~ 125C

Package Includes:

1 x ESP-12F ESP8266 Wireless WiFi Module
