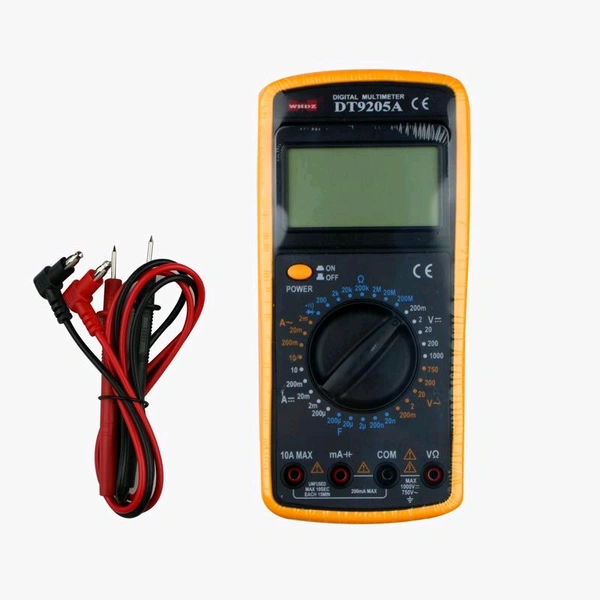

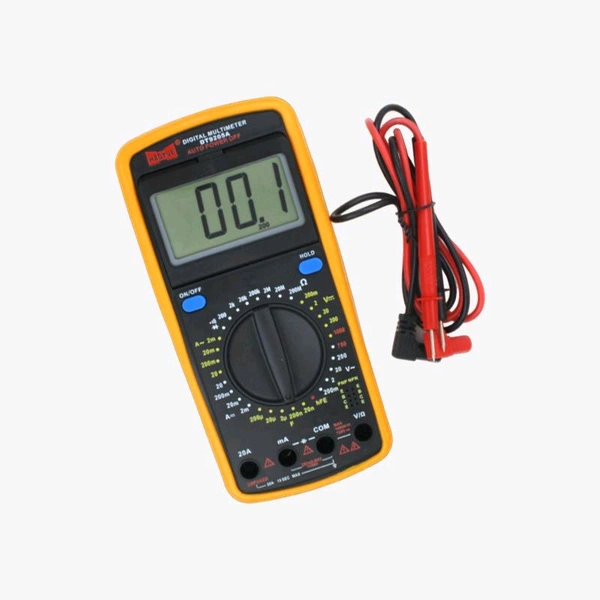

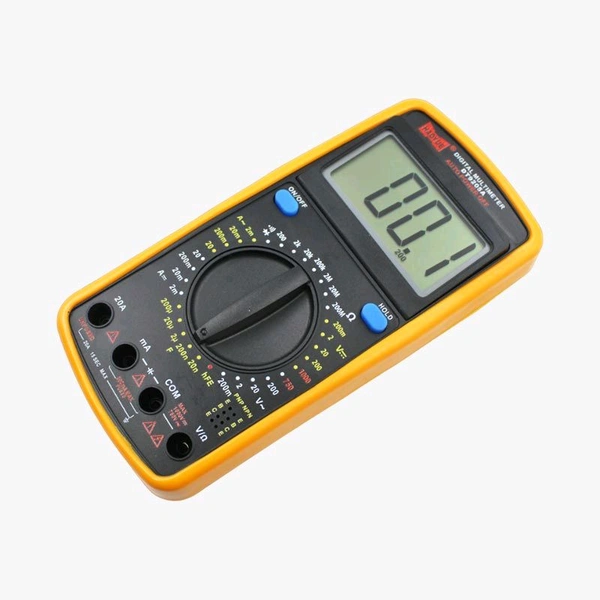

DT9205A Digital Multimeter with Probes and Battery Q15 C1

DT9205A Digital Multimeter Features:

Automatic polarity indication Diode and transistor (hfe) test Ranging mode: manual Basic

accuracy: 0.8% (1.0% for 2000k range)

Overload protection: 220vrms max.

For 15 seconds Over range: yes

Transistor test: yes

Diode test: yes

Low-battery indication Voltage measurements: ac 500v and dc 500v max.

Current measurements: dc 10a max.

Resistance measurements: 2mohm

Dc voltage: 200m/2/20/200/1000v Ac voltage: 200m/2/20/200/750v

Dc current: 2/20/200n/2/20/200u/2/20m/200m/20a

Ac current: 20/200m/2a

Resistance: 2/20/2000m/2/20/200k/2m

Overload protection: 200ma 250v fuse (20a-range is not fuse-protected)

Auto power off

Material: plastic & metal Test leads total length: approx 70cm/27.56" Multimeter size: (approx) 20cm x 9cm x 3cm Weight: 335g Power by: 1 x 9v 6f22 battery (included)
