DS3231 Real Time Clock Module H5 A12DS3231 Real Time Clock Module H5 A12DS3231 Real Time Clock Module H5 A12DS3231 Real Time Clock Module H5 A12
DS3231 Real Time Clock Module H5 A12
DS3231 Real Time Clock Module H5 A12
DS3231 Real Time Clock Module H5 A12
DS3231 Real Time Clock Module H5 A12

DS3231 Real Time Clock Module H5 A12

₹ 185

₹ 230

20%

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep

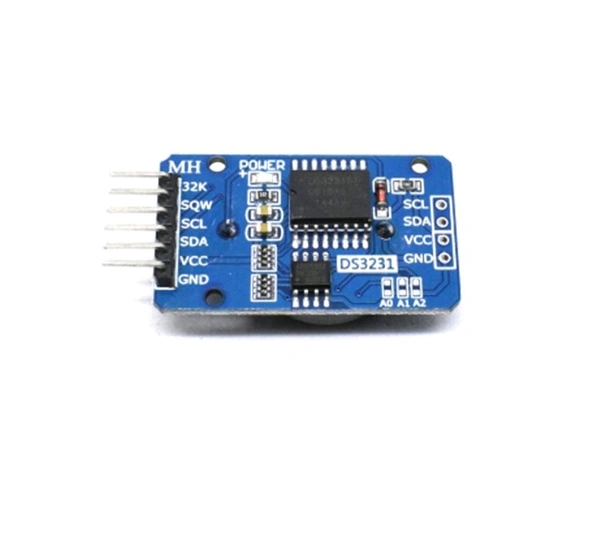

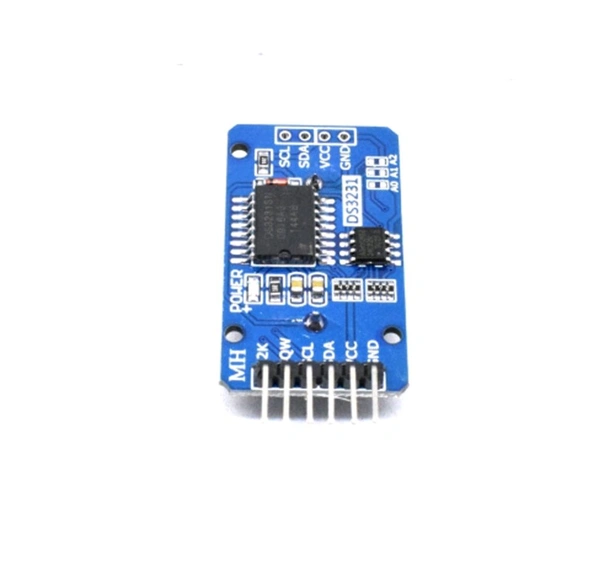

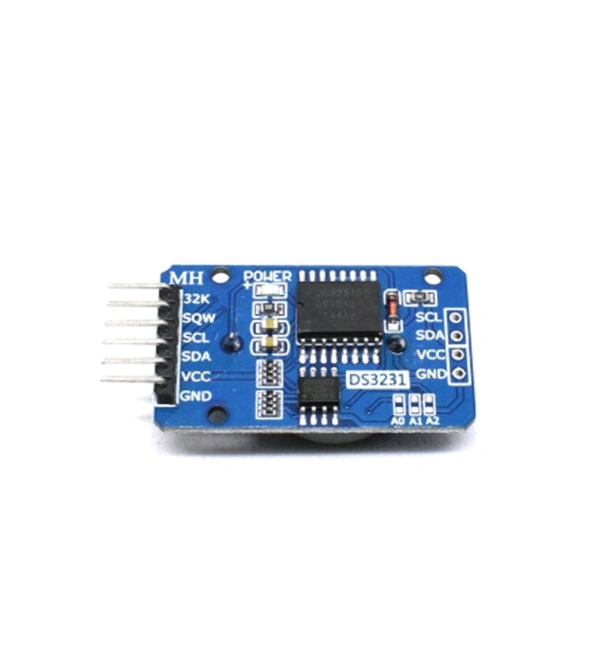

It's a DS3231 Real Time Clock Module. This is a RTC based module. DS3231 RTC is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C. The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted.

Features

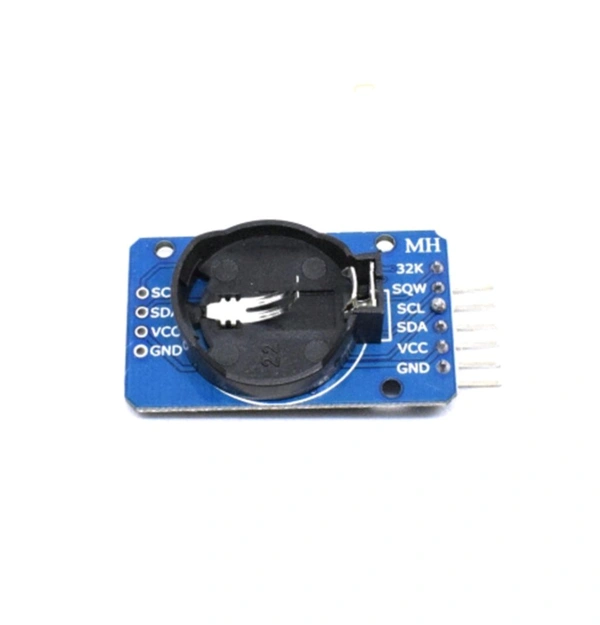

DS3231 based RTC with 2032 Battery Holder.
Highly Accurate RTC
Real-Time Clock Counts
Digital Temp Sensor Output.
Register for Aging Trim.
Two Time-of-Day Alarms.
Programmable Square-Wave Output Signal.
Configurable I2C device Address for AT24C32 using SMD jumpers on PCB (A0, A1, A2).
1Hz output pin SQW.
32KHz output pin 32K.
Time Format: HH: MM: SS (12/24 hr).
Date Format: YY-MM-DD.
Specification
 Voltage Supply 2.2 V ~ 5.5 V
Active Supply Current (VCC = 3.63V/VCC = 5.5V) 200/300 µA
Color Blue
