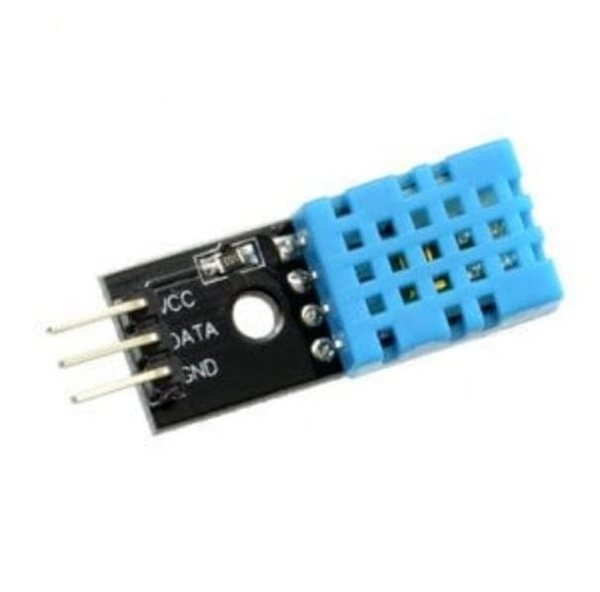

DHT11 Digital Temperature and Humidity Sensor Module

Product Details

• Module: DHT11 Sensor Module
• Pin count: 3
• Pin type: through hole
• Package contains: 1 x DHT11 module and 1 x cable

DHT11 is a digital temperature and humidity sensor and the module comes with inbuilt filtering capacitor and resistors to give accurate output value. The sensor has a dedicated NTC to measure temperature and an 8-bit microcontroller to output the value.

Specification

Voltage supply: 3.5 to 5.5V

Supply current: 0.3mA

Stand by current: 60 �A

Humidity range: 20 to 90%

Temperature range: 0�C to 50�C

Accuracy: �1�C and �1%

<p>Pin Description

<li>Vcc

<li>Data

<li>GND
