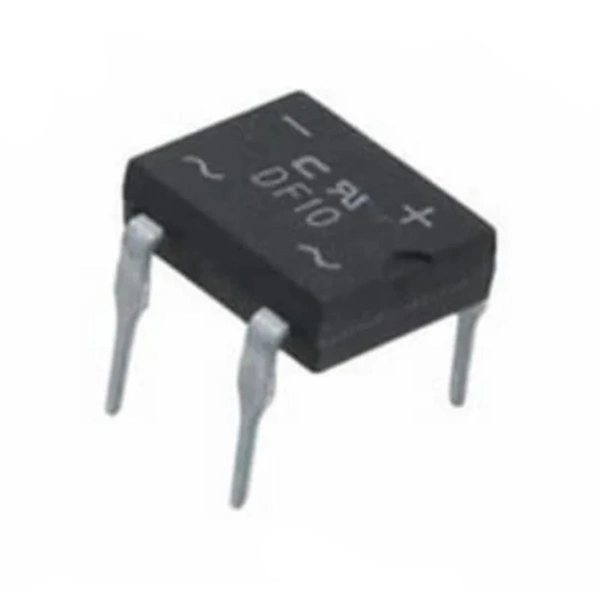

DF10 1000V 1A Single Phase Full Wave Bridge Rectifier IC

DF10 is a single phase full wave Diode rectifier. It is used in AC-to-DC conversion. The rectifier is rated with a maximum 1KV reverse voltage and 1A current rating. It comes with 4-pin case DF tube.

Specification

Peak repetitive reverse voltage: 1000V

Peak forward voltage: 1.1V

Maximum RMS voltage: 700V

Maximum DC blocking voltage: 1000V

Peak average forward current: 1A

Peak reverse current: 10�A

Operating and storage temperature: -55? to 150?

Application

AC-to-DC full wave rectifier for SMPS

Battery charger

Home appliances

Adapter

Lighting ballaster

Telecommunication application
