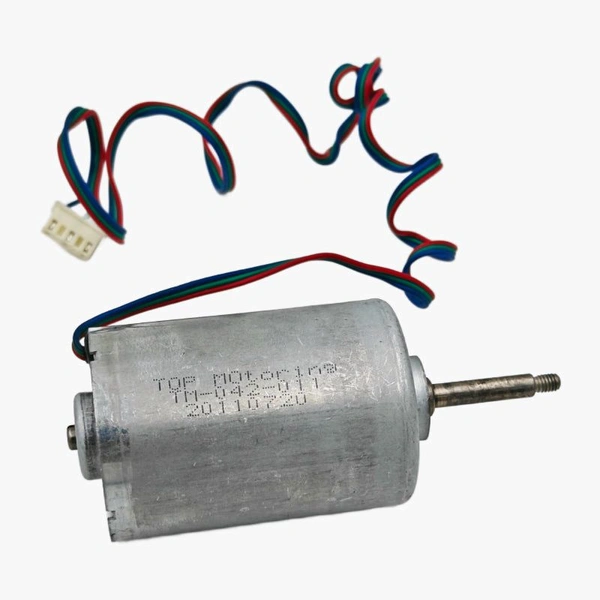

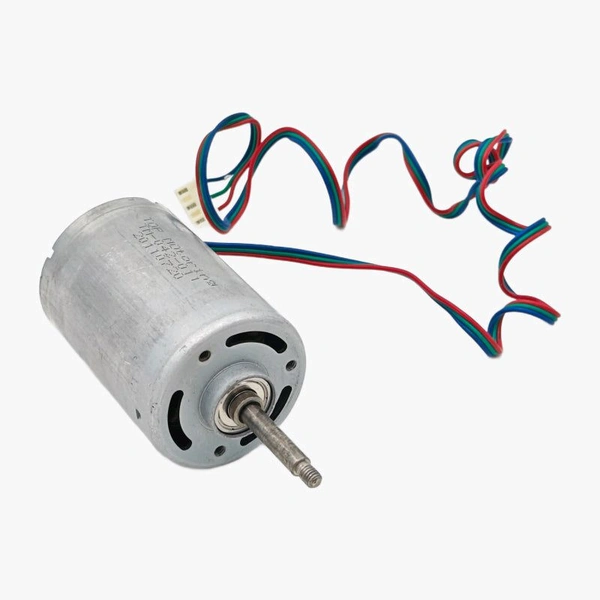

DC 220V High-Speed Brushless Motor 3 Phase Dynamo/Generator with Ball Bearing Q11 C4
₹ 320 / Piece
₹ 350
9%
Delivery Options
Get delivery at your doorstep
DC 220V High-Speed Brushless Motor 3 Phase Dynamo/Generator Features:
Three-phase brushless motor for efficient energy conversion.
Double ball bearing for increased durability.

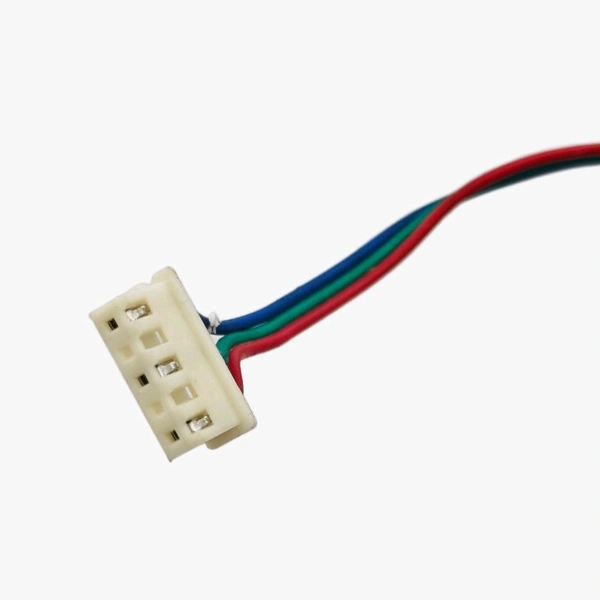

Three-wire connection for easy setup.
Not compatible with 220V household power – must be used with a 220V brushless drive.
Compact and lightweight design for easy installation.
DC 220V High-Speed Brushless Motor 3 Phase Dynamo/Generator Specifications:
Operating Voltage
DC 220V
Max Operating Current
0.28A
Speed
1500 - 10,000 RPM
Shaft Diameter
5mm
Shaft Length
24mm
Motor Shoulder Diameter
17.5mm
Motor Shoulder Height
5mm
Motor Diameter
42mm
Total Length (with Shaft)
100mm
Power Consumption
45W
Package Includes:
1 x DC 220V High-Speed Brushless Motor 3 Phase Dynamo/Generator with Ball Bearing
