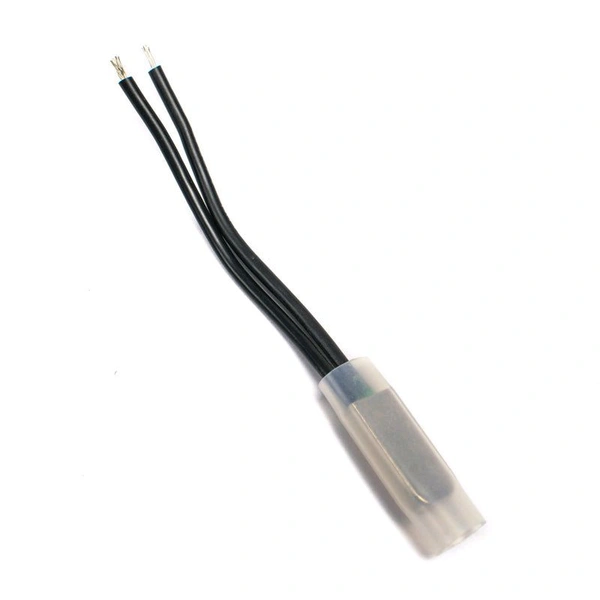

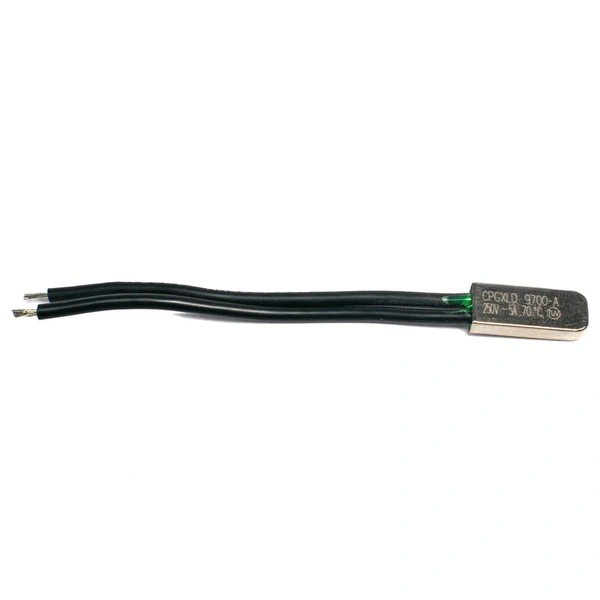

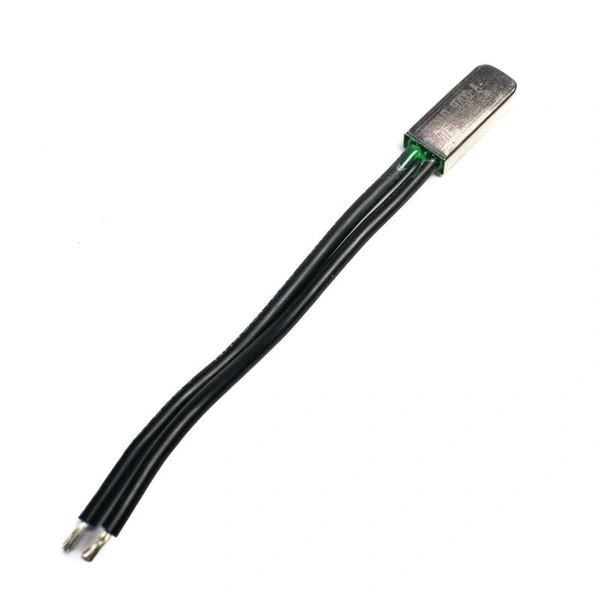

CPGXLD 9700-A 250V 5A 70°C Thermostat
H2 A10

CPGXLD 9700-A 250V 5A 70°C Thermostat H2 A10

Name: CPGXLD 9700-A 250V 5A 70°C Thermostat H2 A10
SKU: SKU-6590
Price: 38 INR
Availability: InStock

₹ 38 / Piece

₹ 45

16%

Delivery Options

Get delivery at your doorstep

Product Not Available

CPGXLD 9700 series thermal protector consists of dish shape high sensitive bimetallic element, movable contact-head, static contact-piece, thermal resistant lead and so on. When an electric appliance is in operation, the bimetallic element is in a free state and the movable contact head and static contact piece are closed and the circuit is on. When the electric appliance is in operation and produces heat caused by some troubles and the temperature is raised to the rated action temperature of the product, the bimetallic element produces inner stress and acts quickly and pushes the movable contact head and makes the contact point off and the power supply is turned off the and electric appliance stops. In this way, thermal protection is made. When the temperature of the electric appliance to be protected is dropped to the rated reset temperature. The bimetallic element restores to its primary state and the contact point is closed. The electric appliance restores. The product has many advantages such as smaller resistance. quick in temperature feeling fast in action Safe and reliable.

Specifications

Rating Voltage 250V

Rated Current 5A

Item Type Thermal Protector

Contact Type Normally Closed

Material Metal Shell

Model 9700-A

Temperature 70°C

Dimension 20x7.4x3.5mm
