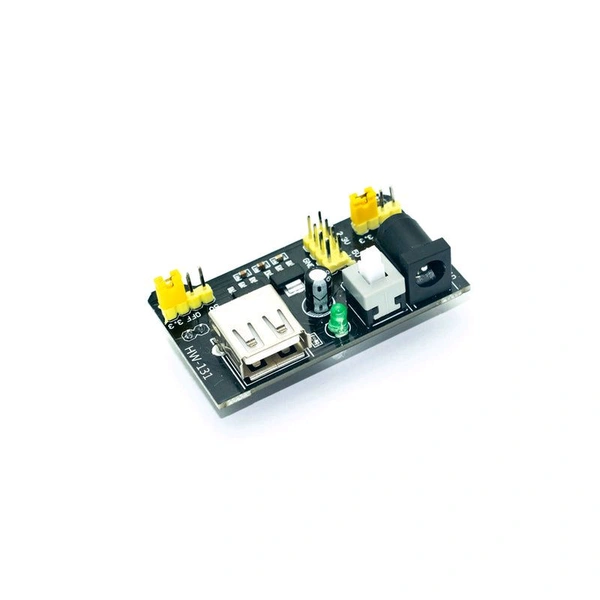

Breadboard Power Supply Module 3.3V/5V H1 A22

This is a Breadboard Power Supply Module 3.3V/5V with a multi-purpose female USB connection and two independent power lines that may be tuned to a 5V or 3.3V output voltage or turned off completely. The ON/OFF switch on the module is used to turn it on and off. The Breadboard Power Supply Module 3.3V/5V securely fits in a typical 400 or 800 tie points breadboard, and it also has reverse polarity protection. It accepts 6.5V to 12V input and outputs 3.3V and +5V.

Features

Designed to fit the standard MB102 breadboard

Power Supply comes with On/Off Switch

Green LED power indication

Built-in protection against short-circuit through power limiting circuitry

compatible with 5V, 3.3V

Input Voltage: 6.5-12V (DC) or USB power

Output voltage: 3.3V, 5V

switchable Maximum Output Current: <700ma

The two-way independent control

The output voltage can be switched to 0V, 3.3V, 5V

On-board Two sets of 3.3V, 5V DC output pins, which lets you connect directly to external circuits and to multiple breadboards.

Specification

Input Voltage 6.5-12V

Output Voltage 3.3V/5V

Max. Output Current 700mA

Dimension 53x32x23mm

Model MB102

Short Circuit Protection Yes
