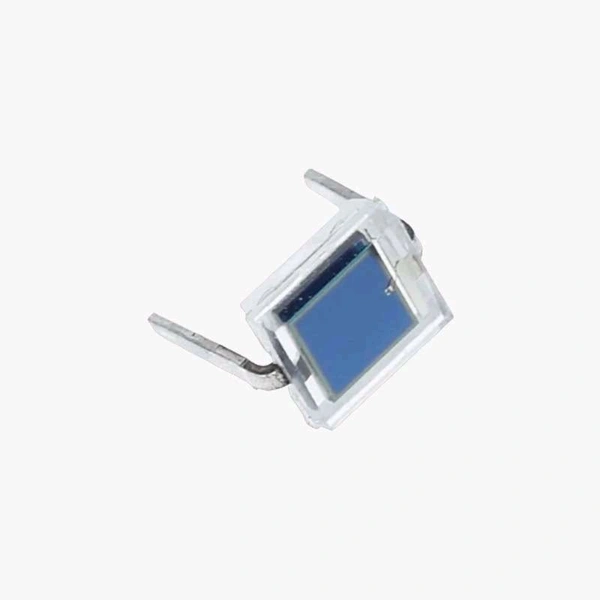

BPW34 Silicon PIN Photodiode Q1 C6

Features:

Package type: leaded

Dimensions (L x W x H in mm): 5.4 x 4.3 x 3.2

Radiant sensitive area (in mm2): 7.5

High photo sensitivity

High radiant sensitivity

Suitable for visible and near infrared radiation

Fast response times

Angle of half sensitivity: ϕ = ± 65°

Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

Application: High speed photo detector.

Specifications:

Product Type Photodiode PIN

Peak Wavelength 1100 nm

Lens Type Blue

Half Intensity Angle Degrees 65

Maximum Collector Current 2 nA

Mounting Through Hole

Pins 2

Minimum Operating Temperature -40°C

Maximum Operating Temperature 100°C
